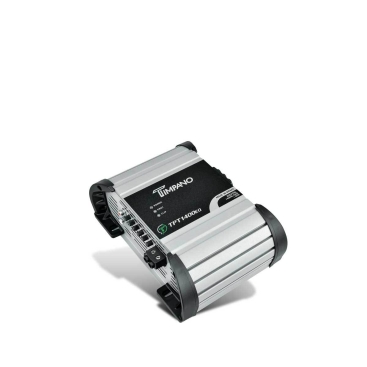

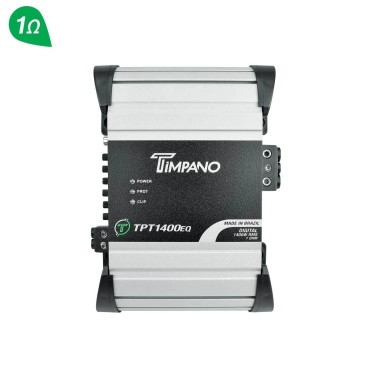

TIMPANO, 1 CHANNEL COMPACT CLASS D CAR AUDIO AMPLIFIER, 1400W PEAK @ 1-OHM

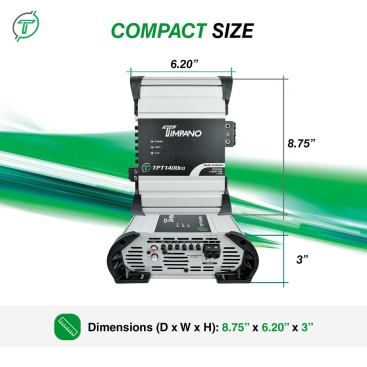

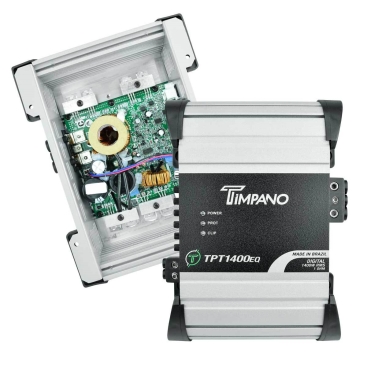

COMPACT DESIGN: Digital class D Brazilian technology allows this amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 8.75″ depth x 6.20″ width x 3″ height

POWER: This amplifier is designed to run multiple speakers with the power they need to perform! Systems that demand 1400 Watts dynamic RMS power output at 1 Ohm on 1 channel. Its high efficiency rate of 81% provides more power with less battery consumption.

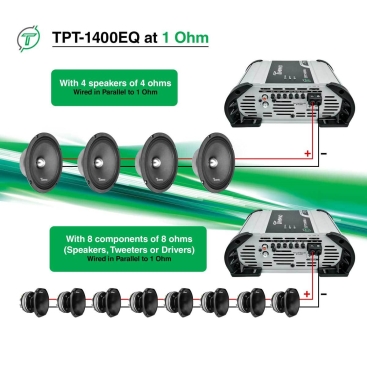

FULL RANGE 1 OHM STABLE: A benefit of using a 1 channel full range amp is to be able to wire multiple speakers down to 1 Ohm and dividing the power. Most common setup is 4 speakers of 4 Ohms wired in parallel, providing up to 350 watts per speaker. Other common setups are 8 speakers, 8 tweeters or 8 drivers of 8 ohms wired in parallel, providing up to 175 watts per component.

TECHNOLOGY: A smart electronic 4-way protection circuit protects the amp if it gets too hot, if speakers fail causing a short and as well low/high voltage protections! Focusing on sound quality, a response of 10 to 25,000Hz was used to give the best sound reproduction from this tiny amp. This makes it a popular option for systems with many drivers or tweeters.

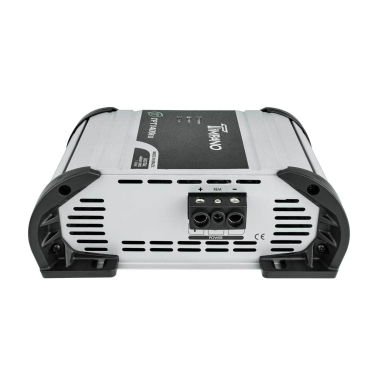

FEATURES: 4 gauge power connectors. 10 gauge speaker wire outputs.  Variable Gain Control to adjust the amount of signal that is coming into the amplifier. Built-in variable HPF / LPF crossover filters and a 3 band equalizer. This allows tuning for speakers or horn drivers, an easy setup without needing an external crossover.

Specifications:

• Number of Channels: 1
• Max Dynamic Output: 1400 Watts RMS 1 Ohm
• Power at 1 Ohm 12.6 Volts: 1200 Watts RMS
• Power at 2 Ohms 12.6 Volts: 700 Watts RMS
• Supply Voltage: 11 ~ 16V
• Frequency Response: 10Hz ~ 25KHz
• Crossover Low Pass: 50Hz ~ 25KHz
• Crossover High Pass: 10Hz ~ 700Hz
• Signal to Noise: > 90 dB
• Harmonic Distortion: < 0.9 % THD
• Input Sensitivity: 0.2 V
• Input Impedance: 12K Ohms
• Impedance Output: 1 Ohm
• Consumption with Signal Musical: 1A ~ 57A

• Manufacturer warranty only
• click here for waranty

NOTE: Before Installing:

You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

• Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
• Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;
• Always use 100% Copper wire and good quality connectors. This guarantees reliability and performance.
• To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 60A fuse 12 inches away from the battery as a safety precaution
