TIMPANO, 1/2 DIN 7 BAND EQUALIZER TPT-EQ7 10V HIGH VOLTAGE LINE DRIVER

Name: TIMPANO, 1/2 DIN 7 BAND EQUALIZER TPT-EQ7 10V HIGH VOLTAGE LINE DRIVER
SKU: TPT-EQ7-10V
Availability: InStock

$62.50

Enhance car audio with 7-band EQ, real-time adjustments, built-in speaker wire to RCA converter for factory radios. Quality sound upgrade!

SKU: TPT-EQ7-10V Categories: Car Audio, EQs, Sound Processors Tag: import

Specifications:

Inputs: Main In (RCA) and Hi-Input (Speaker Wire)
Outputs: Sub Out / Front and Rear
Audio Controls: Input Level / Fader / 7 Band EQ +/- 12 dB Level
Bass Knobs: Sub Level / LPF Frequency 60 Hz to 90 Hz
Frequency Response: 5 Hz to 140 kHz
Working Voltage: 9v to 16v DC

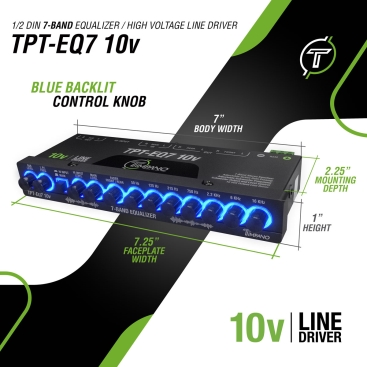

Dimensions: 7.25″ x 1″ x 2.25″ Mounting Depth
Weight: 0.68 lbs

Designed to optimize your acoustic system’s clarity and efficiency to ensure the highest level of clarity. This equalizer has 7 different bands, including a separate bass control knob, which can be adjusted in real time while in your vehicle.

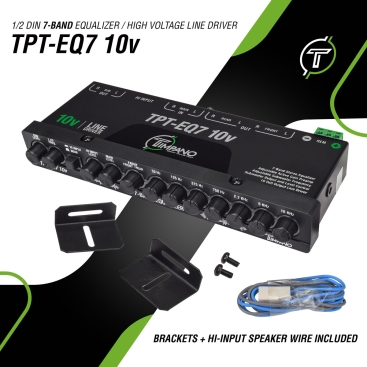

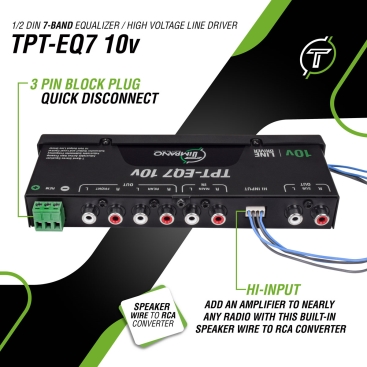

Speaker Wire to RCA converter built-in, the HI-INPUT converter also makes it the perfect choice for those looking to add amplifiers to their factory radio.

An equalizer lets you customize the sound to meet your preferences. Manufactured with high quality materials to enhance sound quality of your system. For those who enjoy quality music during a drive, you know that upgrading your car stereo for speakers is not enough.

The equalizer features knobs to control adjustment and equalization of audio signal according to your desirable tuning:

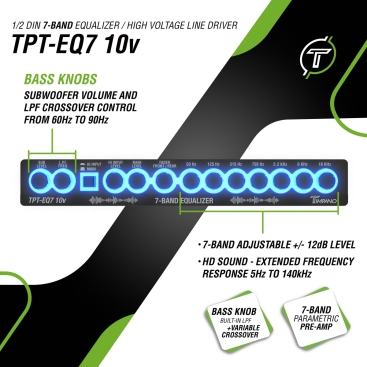

Bass Knobs control: Set the level and sub output frequency
Input Switch: Select the input signal channel (MAIN or HI INPUT)
Input Controls: Individual LEVEL adjustment in each input (HI INPUT or MAIN)
Fader Front/Rear Control: Set the balance between the FRONT and REAR outputs

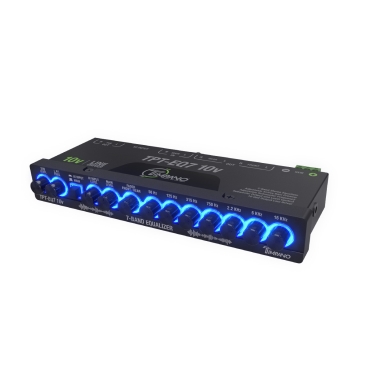

LED Lighting: For better control visualization, they lit on a LED frame, at color BLUE
Frequency controls: Equalizer with 7 bands (50 Hz / 125 Hz / 315 Hz / 2.2 kHz / 6 kHz / 16 kHz)

User Manual: Manual for TPT-EQ7 10v
