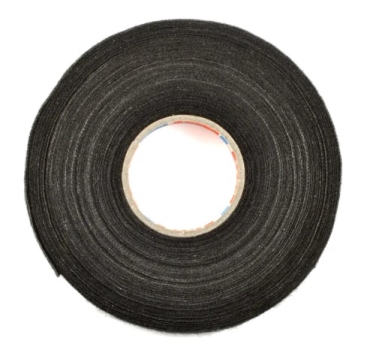

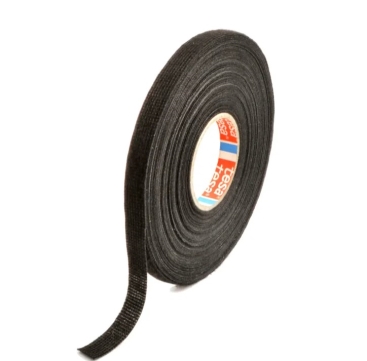

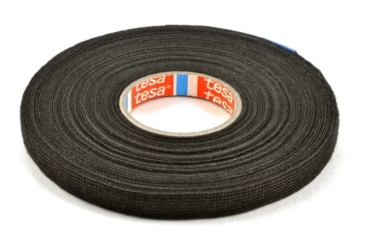

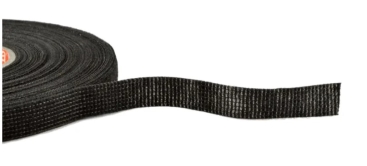

TESA 3/8IN X 25M INTERIOR HARNESS TAPE

Specifications

• Abrasion resistance (10mm mandrel): Class B (acc. to LV312)
• Abrasion resistance (5mm mandrel): Class A (acc. to LV312)
• Adhesion to Steel: 27.4 oz/in
• Backing Material: PET fleece
• Elongation at Break: 0,2
• Flame resistance as composite: Class B (acc. to LV312)
• Noise damping (decibel): Class C (acc. to LV312)
• Temperature resistance (3000h): 221 °F
• Temperature resistance min.: -40 °F
• Tensile strength: 21.12 lbs/in
• Total thickness: 9.84 mils
• Type of adhesive: rubber based
• Unwind force (roll width > 9mm): 9 N/roll (30 m/min)
• Unwind force (roll width ≤ 9mm): 4.6 N/roll (30 m/min)

Features

• Noise damping performance
• Basic abrasion resistant performance
• Flexible and smooth appearance
• Tear resistant for secure bundling of harnesses
• Stable unwind force for constant behavior when applying
• Ageing resistance performance
• Strong adhesion
• Hand-tearable for quick application
