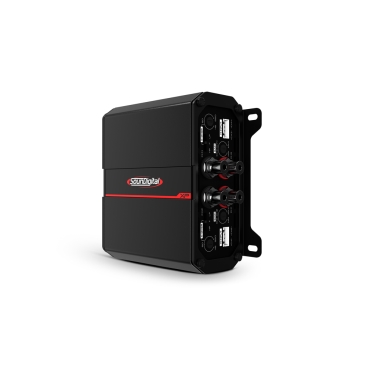

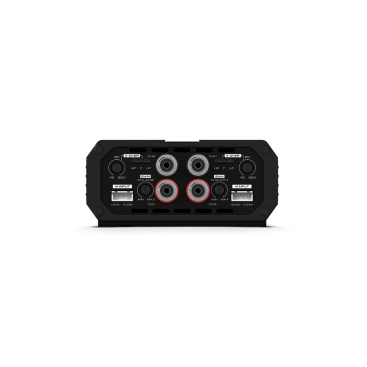

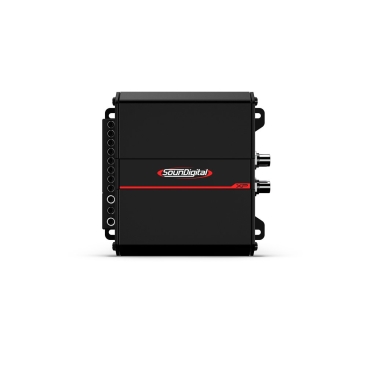

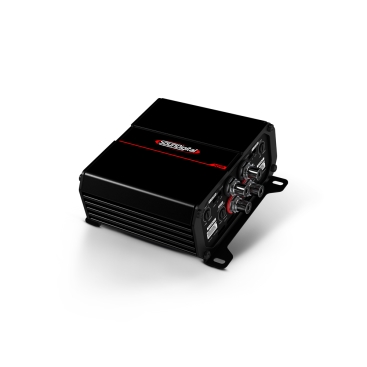

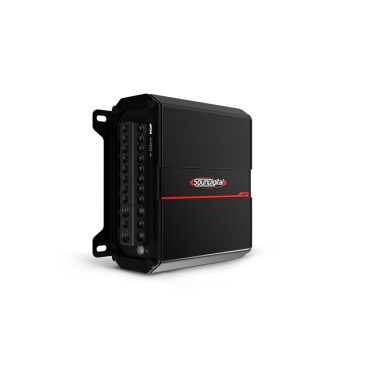

SOUNDIGITAL, 4 CHANNEL AMPLIFIER: 4X66W AT 4OHM, 2X200W BRIDGE POWER, 9-16V, 96DB SNR

Specifications:

• Power Output @ 4 ohms: 4 x 66W RMS

• Power Output @ 2 ohms: 4 x 100W RMS

• Bridged Power @ 8 ohms: 2 x 132W RMS

• Bridged Power @ 4 ohms: 2 x 200W RMS

• Operating Voltage: 9V – 16V

• Current Draw (Music/Max): 17A / 34A

• Recommended Fuse (Music): 20A

• Frequency Response (-3dB): 5Hz – 36kHz

• Signal-to-Noise Ratio: 96dB

• THD + N (10% Rated Power): 0.1%

• High Pass / Low Pass Crossover: 45Hz – 850Hz

• Recommended Battery: 40aH

• Power Cable: 7 AWG | Speaker Cable: 15 AWG

• Compact Size: 4.69 x 4.44 x 2.0 in (11.9 x 11.3 x 5.0 cm)
