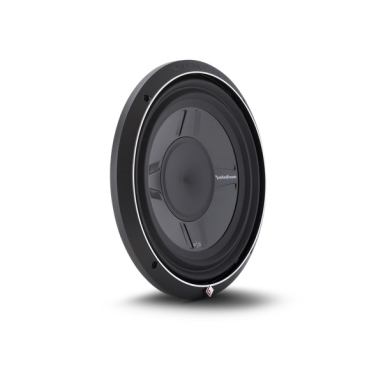

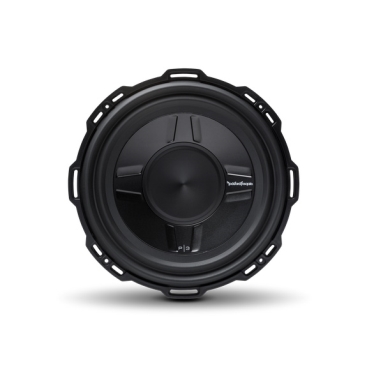

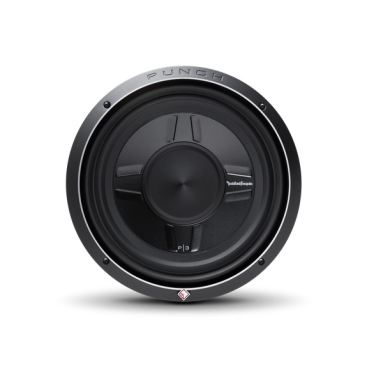

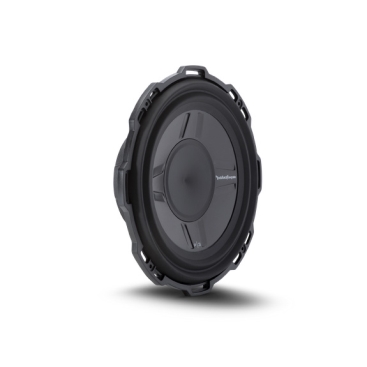

ROCKFORD FOSGATE, PUNCH 12″ P3S SHALLOW 4-OHM DVC SUBWOOFER

Specifications:

• Nominal Impedance
  • Dual 4-Ohm
• Speaker Connector
  • Dual 10 AWG Compression
• Mounting Depth
  • 3.65 in. (92.5 mm)
• Magnet Weight (oz)
  • 51 oz. (1.45 kg.)
• Voice Coil Diameter
  • 2.5″ (65.5 mm)
• Re (Ohms)
  • 6.80
• Qms
  • 5.70
• Size
  • 12″
• Vas (Liters)
  • 35.3
• Fs (Hz)
  • 35.4
• Shipping Weight
  • 13.25 Lbs. (6.01 kg.)
• Qts
  • 0.72
• Qes
  • 0.83
• Cutout Diameter
  • 11.22 in. (285.0 mm)
• Woofer Displacement
  • 0.086 cu. ft. (2.45 Liters)
• CEA-2031 Compliant
• Power Handling (Watts RMS)
  • 400 Watts RMS
  • 800 Watts Max
• Le (mH)
  • 4.4
• Sd (cm²)
  • 500
• SPL (dB @ 1w/1m)
  • 85
• Xmax (mm)
  • 8.1
• Subwoofer Type
  • Shallow
• Voice Coil Type
  • Dual Voice Coil
• Sealed Box Volume (Vb)
  • cu. ft. (28.3 Liters)
• Vented Box Volume (Vb)
  • 1.25 cu. ft. (35.3 Liters)
