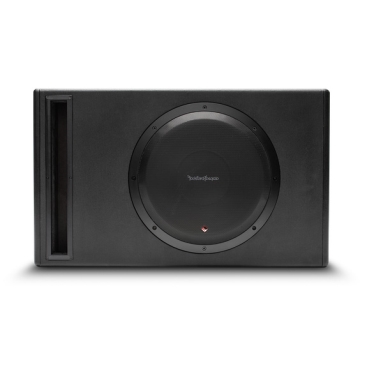

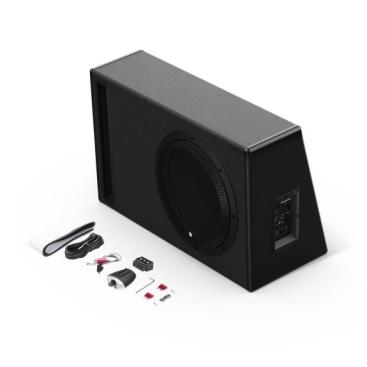

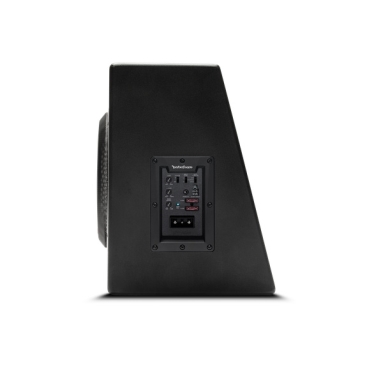

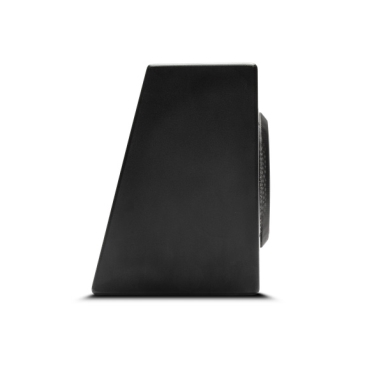

ROCKFORD FOSGATE, PUNCH 12″ 500-WATT POWERED ENCLOSURE

Specifications:

• CEA-2006 Compliant
• CEA-2031 Compliant
• Woofer Quantity
  • 1
• Woofer Size
  • 12″
• Woofer Series
  • Proprietary
• Frequency Response
  • 20 Hz to 200 Hz
• Power Handling (Watts RMS)
  • 500 Watts RMS
• Enclosure Type
  • Ported
• Integrated Amplifier
  • 500 Watts RMS
• Enclosure Material
  • 5/8″ MDF (Medium Density Fiberboard)
• Crossover Controls
  • Variable 50 Hz to 200 Hz
  • 12dB/Octave Butterworth
• Tone Controls
  • Bass Boost
  • 0 dB to +12 dB @ 45 Hz
• Phase Control
  • 0° to 180°
• Remote Control
  • Punch Level Control (Included)
• Auto Turn-On Selector
  • Remote Trigger
  • DC Offset Sense
  • Audio Sense
• Input Switch
  • High-Level (Speaker Line)
  • Low-Level (RCA)
• Signal Input
  • Low/High-Level: 1 RCA Pair (L/R Summed)
• Input Impedance
  • 20k Ohms
• Power Input Connector
  • Quick Disconnect
• Power Wire Gauge
  • B+/GND: 8 AWG
  • REM: 18 AWG
• Heatsink Type
  • Extruded Aluminum
• Input Sensitivity
  • Low-Level: 150 mV to 6 V
  • High-Level: 300 mV to 12 V
• Circuit Topology Class
  • Class-D
• Cooling
  • Convection
• Visual Indicators
  • Power/Protect LED
• Fuses
  • 30 Amp (2 x 15 Amp ATO Fuse)
• Dimensions Box H x W x D Wedge H x W x D1 x D2
  • 15.00” x 24.76” x 10.91 x 7.71”
  • (38.1 cm x 62.9 cm x 27.7 cm x 189.2 cm)
• Shipping Weight
  • 48.2 Lbs. (21.9 kg)
