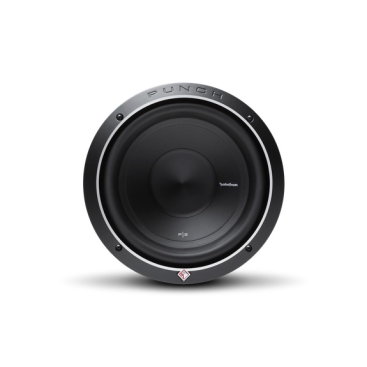

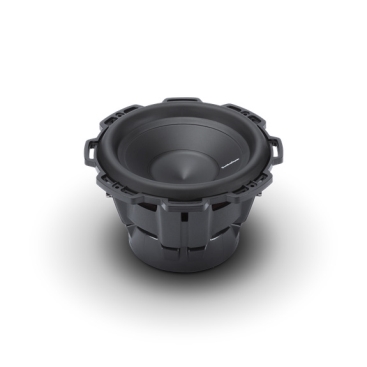

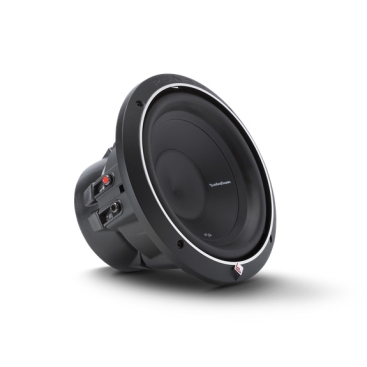

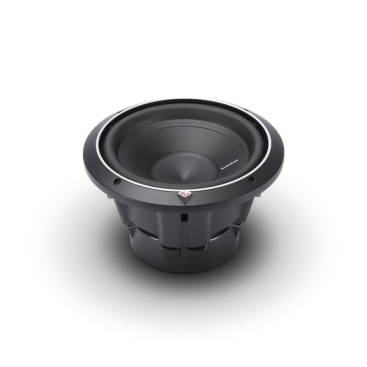

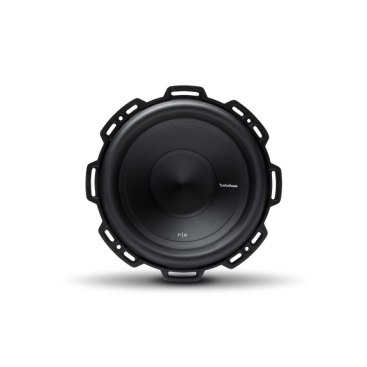

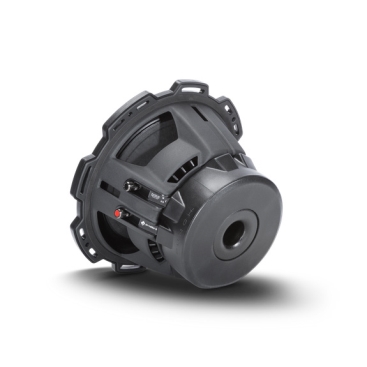

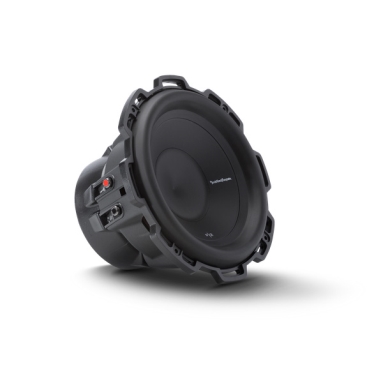

ROCKFORD FOSGATE, PUNCH 10″ P2 2-OHM DVC SUBWOOFER

Specifications:

• Power Handling (Watts RMS)
  • 300 Watts RMS
  • 600 Watts Max
• Size
  • 10″
• Nominal Impedance
  • Dual 2-Ohm
• Mounting Depth
  • 5.92 in. (150.4 mm)
• Voice Coil Diameter
  • 2.25″ (57.15 mm)
• SPL (dB @ 1w/1m)
  • 84
• Qms
  • 7.00
• Vas (Liters)
  • 35.4
• Qes
  • 0.54
• Woofer Displacement
  • 0.060 cu. ft. (1.7 Liters)
• Le (mH)
  • 3.32
• Xmax (mm)
  • 11
• Magnet Weight (oz)
  • 66.4 oz. (1.88 kg.)
• Fs (Hz)
  • 29
• Shipping Weight
  • 13.6 Lbs. (6.16 kg)
• Speaker Connector
  • Dual 10 AWG compression
• Qts
  • 0.50
• Re (Ohms)
  • 3.20
• Cutout Diameter
  • 9.13 in. (232 mm)
• CEA-2031 Compliant
• Sd (cm²)
  • 360
• Subwoofer Type
  • Standard
• Voice Coil Type
  • Dual Voice Coil
• Sealed Box Volume (Vb)
  • 0.59 cu. ft. (16.7 Liters)
• Vented Box Volume (Vb)
  • 1.4 cu. ft. (39.6 Liters)
