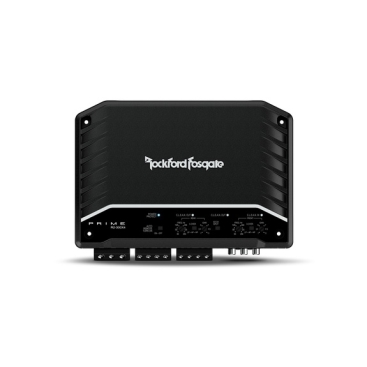

ROCKFORD FOSGATE, PRIME 300WATT 4 CHANNEL AMPLIFIER

Specifications:

• Number of Channels
  • 4
• Total Power (Sum of Rated Power)
  • 300 Watts
• Rated Power (RMS Continuous Power)
  • 50 Watts x 4 @ 4Ω 75 Watts x 4 @ 2Ω 150 Watts x 2 @ 4Ω Bridged/Mono
• Dynamic Power (PVC/PowerCube®)
  • 70 Watts x 4 @ 4Ω 115 Watts x 4 @ 2Ω 230 Watts x 2 @ 4Ω Bridged/Mono
• Bridgeable
  • Yes
• Frequency Response
  • 20 Hz – 20 kHz
• Input Sensitivity
  • Low-Level: 150 mV – 4 V High-Level: 450 mV – 12 V
• Circuit Topology Class
  • Class-D
• Efficiency (average)
• Total Harmonic Distortion (THD+Noise)
  • 4Ω: <1.0% 2Ω: <1.0%
• Signal Input
  • Front Low-Level: 4 RCA
  • Front High-Level: 4-Pin Molex
  • Rear Low-Level: 4 RCA
  • Rear High-Level: 4-Pin Molex
  • Input Switch: 2/4 Input (works for RCA/hi-level inputs)
• Signal Output
  • Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input)
• Tone Controls
  • No
• Crossover Controls
  • Front High-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
  • Front Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
  • Rear High-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
  • Rear Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
  • All-Pass: Yes
• Remote Controls
  • No
• Visual Indicators
  • Power/Protect
  • C.L.E.A.N. In
  • C.L.E.A.N. Out (front)
  • C.L.E.A.N. Out (rear)
• Power Wire Gauge
  • 4 AWG
• Power Input Connector
  • Compression Terminal Block
• Speaker Wire Gauge
  • 8 AWG
• Speaker Output Connector
  • Compression Terminal Block
• Cooling
  • Convection
• Heatsink
• Operating Voltage
  • 9 – 16 VDC
• Recommended Fuse (not included)
  • 60 A
• Average Current Draw (13.8V Music)
• Max. Current Draw (13.8V Sinewave)
  • 39 A
