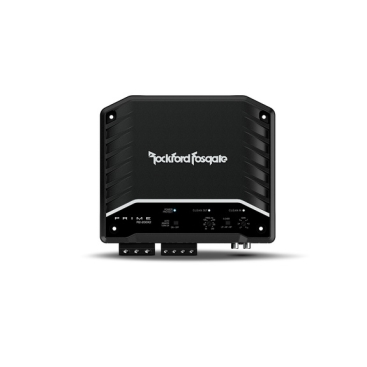

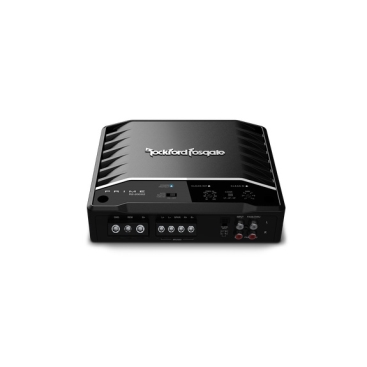

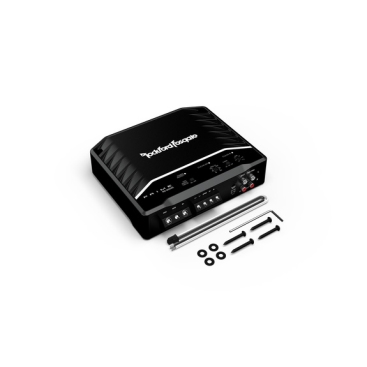

ROCKFORD FOSGATE, PRIME 200 WATT 2-CHANNEL AMPLIFIER

Specifications:

• Number of Channels
  • 2
• Total Power (Sum of Rated Power)
  • 200 Watts
• Rated Power (RMS Continuous Power)
  • 50 Watts x 2 @ 4Ω
  • 100 Watts x 2 @ 2Ω
  • 200 Watts x 1 @ 4Ω Bridged/Mono
• Dynamic Power (PVC/PowerCube®)
  • 60 Watts x 2 @ 4Ω
  • 107 Watts x 2 @ 2Ω
  • 215 Watts x 1 @ 4Ω Bridged/Mono
• Bridgeable
  • Yes
• Frequency Response
  • 20 Hz – 20 kHz
• Input Sensitivity
  • Low-Level: 150 mV – 4 V
  • High-Level: 450 mV – 12 V
• Circuit Topology Class
  • Class-D
• Efficiency (average)
• Total Harmonic Distortion (THD+Noise)
  • 4Ω: <1.0%
  • 2Ω: <1.0%

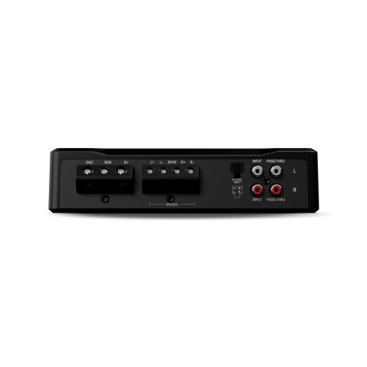

• Signal Input
  • Low-Level: 2 RCA
  • High-Level: 4-Pin Molex
• Signal Output
  • Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input)
• Tone Controls
  • No
• Crossover Controls
  • High-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
  • Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth All-Pass: Yes
• Remote Controls
  • No
• Visual Indicators
  • Power/Protect
  • C.L.E.A.N. In
  • C.L.E.A.N. Out
• Power Wire Gauge
  • 4 AWG
• Power Input Connector
  • Compression Terminal Block
• Speaker Wire Gauge
  • 8 AWG
• Speaker Output Connector
  • Compression Terminal Block
• Cooling
  • Convection
• Operating Voltage
  • 9 – 16 VDC
• Recommended Fuse (not included)
  • 30 A
• Average Current Draw (13.8V Music)
• Max. Current Draw (13.8V Sinewave)
  • 18 A
