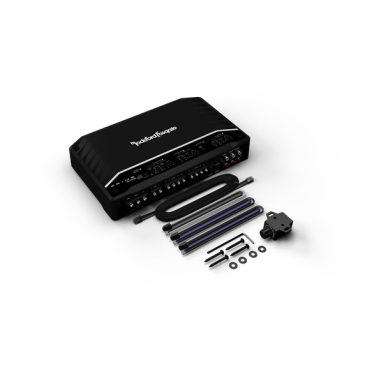

ROCKFORD FOSFATE, PRIME 750 WATT MONO CHANNEL AMPLIFIER

Specifications:

• Cta-2006 Compliant
• Number of Channels
  • 1
• Total Power (Sum of Rated Power)
  • 750 Watts
• Rated Power (RMS Continuous Power)
  • 250 Watts x 1 @ 4Ω 500 Watts x 1 @ 2Ω 750 Watts x 1 @ 1Ω
• Dynamic Power (PVC/PowerCube®)
  • 300 Watts x 1 @ 4Ω 545 Watts x 1 @ 2Ω 830 Watts x 1 @ 1Ω
• Bridgeable
  • No
• Frequency Response
  • 20 Hz – 250 Hz
• Input Sensitivity
  • Low-Level: 150 mV – 4 V High-Level: 450 mV – 12 V
• Circuit Topology Class
  • Class-D
• Efficiency (average)
• Total Harmonic Distortion (THD+Noise)
  • 4Ω: <1.0% 2Ω: <1.0% 1Ω: <1.0%
• Signal Input
  • Low-Level: 2 RCA High-Level: 4-Pin Molex
• Signal Output
  • Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input)
• Tone Controls
  • 0 to +18 dB @ 45 Hz
• Crossover Controls
  • Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
  • Infrasonic: 15 Hz – 40 Hz @ 12dB/Octave Butterworth
• Remote Controls
  • Yes
• Visual Indicators
  • Power/Protect C.L.E.A.N. In C.L.E.A.N. Out
• Power Wire Gauge
  • 4 AWG
• Power Input Connector
• Compression Terminal Block
• Speaker Wire Gauge
  • 8 AWG
• Speaker Output Connector
  • Compression Terminal Block
• Cooling
  • Convection
• Operating Voltage
  • 9 – 16 VDC
• Recommended Fuse (not included)
  • 120 A
• Average Current Draw (13.8V Music)
• Max. Current Draw (13.8V Sinewave)
  • 71 A
• Dimensions (H x W x D)
  • 1.9″ x 6.8″ x 10.1″ (4.9 cm x 17.3 cm x 25.5 cm)
