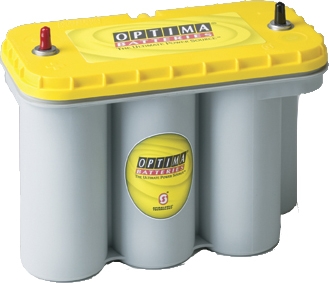

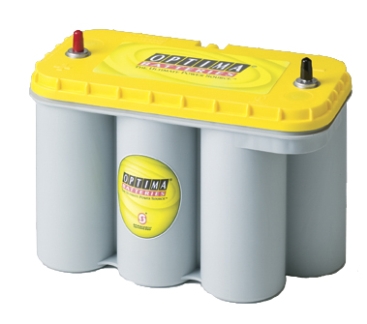

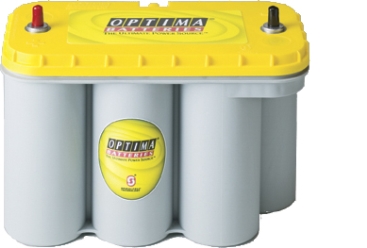

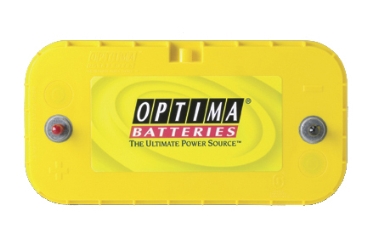

OPTIMA D31T YELLOWTOP STARTING & DEEP-CYCLE BATTERY (THREADED POSTS)

OPTIMA® Batteries 8050-160 D31T YELLOWTOP® Starting & Deep-Cycle Battery (Threaded Posts)

 OPTIMA® YELLOWTOP® D31T Ultra high-performance SPIRALCELL TECHNOLOGY® AGM (absorbent glass mat) dual-purpose deep-cycle and starting battery. OPTIMA® YELLOWTOP® batteries have three times the cycling capability (rechargeability) with ultimate cranking power for your auto, car or truck to outperform traditional batteries. Perfect for powering heavy electrical loads, including winches, audio systems, inverters, and other demanding vehicle accessories and electronics. Lower internal resistance provides more efficient power output and faster recharges.

 To Check which Optima batteries fit your car click here and click on the search tab on the right side of the page.

Battery Model: D31T
Part Number: 8050-160
NSN: 6140 01 457 5469
UPC Code: 8 11405 00050 8
Performance Data
Cold Cranking Amps: 900
Cranking Amps: 1125
Nominal Voltage: 12 volts
Open Circuit Voltage (fully charged): 13.1 volts
Internal Resistance (fully charged): 0.0025 ohms
Capacity: 75 Ah (C/20)
Reserve Capacity: BCI: 155 minutes (25 amp discharge, 80°F (26.7°C), to 10.5 volts cut-off)
Physical Characteristics
Plate Design:
High purity lead-tin alloy.  Wound cell configuration utilizing proprietary
SPIRALCELL TECHNOLOGY®.
Electrolyte:
Sulfuric acid, H2SO4
Case: Polypropylene
Case Color: Light Gray
Cover Color: “OPTIMA“ Yellow
Group Size: BCI: 31
Post Type: 3/8 Stainless Steel Stud
Weight: 59.8 lb
Length: 12.19 in
Width: 6.56 in
Height: 9.38 in
Power
CCA (BCI 0°F): 900 amps
MCA (BCI 32°F): 1125 amps
Recommended Charging
The following charging methods are recommended to ensure a long battery life:
(Always use a voltage regulated charger with voltage limits set as described below.)

Model: D31T
These batteries are designed for starting and deep cycling applications and for use in vehicles with large accessory loads..
Recommended Charging Information
Alternator: 13.65 to 15.0 volts
Battery Charger: 13.8 to 15.0 volts; 10 amps maximum; 6-12 hours approximate
Float Charge: 13.2 to 13.8 volts; 1 amp maximum (indefinite time at lower voltages)
Rapid Recharge (Constant voltage charger): Maximum voltage 15.6 volts. No current limit as long as battery temperature remains below 125°F (51.7°C). Charge until current drops below 1 amp.
Cyclic or Series String Applications::
14.7 volts. No current limit as long as battery temperature remains below 125°F (51.7°C).  When current falls below 1 amp, finish with 2 amp constant current for 1 hour.
All limits must be strictly adhered to.
