METRA AXXESS FORD RSE/ SYNC/THX AMPLIFIED RETENTION MODULE

Ford all in one harness 2007- up

The FRST interface is for 2007 and up Ford, Lincoln, and Mercury vehicles equipped with RSE (Rear Seat Entertainment), Sync, or THX or any combination of the three to retain these features, plus retain the OEM satellite radio (external LCD (XIA-LCD) required, sold separately) if so equipped . Also the FRST can retain the OEM steering wheel control functions as long as the aftermarket radio has a steering wheel control input.

AXXESS FORD RSE – SYNC – THX amplified retention module

The FRST interface is for 2007 and up Ford Lincoln and Mercury
vehicles equipped with RSE (Rear Seat Entertainment) Sync
or THX or any combination of the three to retain these features
plus retain the OEM satellite radio -viewed through external LCD
supplied- if so equipped.

NOTE: *compatiable with non amplified and amplified sound systems *Sync or thx is not retained when replacing oem navigation radio
(Will not retain THX or SYNC in OE navigation models)

APPLICATIONS

FORD
Edge 2008-up
Escape 2008-up
Expedition 2007-up
Explorer 2008-up
Explorer sport trac 2008-up
F-150 2009-up
Five hundred 2006-07
Flex 2009-up
Focus 2008-up
Fusion 2007-up
Taurus 2008-up
Taurus x 2008-2009

LINCOLN
Mark lt 2007-08
Mkx 2008-up
Mkz 2007-up
Navigator 2007-up

MERCURY
Mariner 2008-up
Milan 2008-up
Montego 2006-07
Mountaineer 2008-up
Sable 2008-09

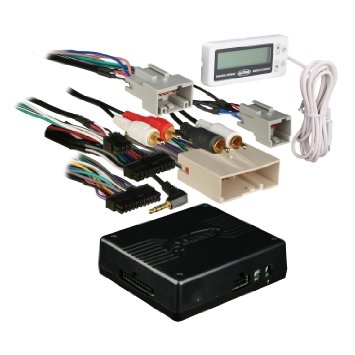

INTERFACE COMPONENTS *A) FRST Interface *B) 4 pin harness with stripped leads *C) 20 pin harness with stripped leads *D) 22 pin to Ford 24 pin harness *E) Female 3.5mm connector with Brown and Brown/White wires *F)LCD Screen

THE FRST also PROVIDES a MUTE PARKING BRAKE VSS OR SPEEDSENSE and a reverse output to make installing an aftermarket navigational radio simpler and less time comsuming.

• SEE WWW.AXXESSINTERFACE.COM FOR FULL LIST OFAPPLICATIONS
