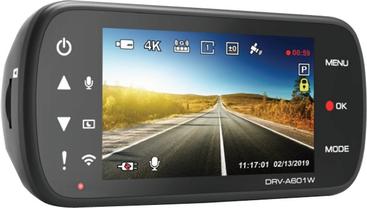

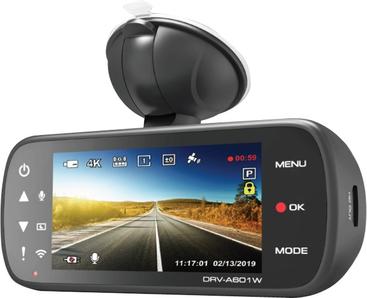

KENWOOD, INTEGRATED DUAL DASH CAM PACKAGE WITH WI-FI

Front Cam Specifications:

• 3.0” Full Color TFT LCD Screen
• 30 Frames Per Second
• 1/2.5 CMOS Sensor
• WDR (Wide Dynamic Range)
• 64GB Micro SD Card (Accepts 8GB – 256GB
  Micro SD Card)
• Reversible Image
• GPS ReceiverG-Shock Sensor & Super Capacitor
• Magnetic Mount for Easy Removal
• Viewing Angles:
  »» 104° x 59° x 120° (Horizontal x Vertical x Diagonal)
• 2 Mounting Brackets: 3M Tape & Suction Cup Style
• 12V DC Power Socket – 13’ Length
• Compatible with Optional Hardwire Kit
• CA-DR1030
• Dimensions (Dash Cam Only)
  4-3/16” x 2” x 1-1/2” (Width x Height x Depth)

​
Rear Cam Specifications

• Viewing Angles:
  »» 129° x 66° x 161° (Horizontal x Vertical x Diagonal)
• 30 Frames Per Second
• 1/2.8 CMOS Sensor
• 3M Tape Mounting Bracket
• Dimensions 2-1/2” x 2-5/8” x 1-7/16”
  (Width x Height x Depth)
• Connecting Cable – 26’ Length (Proprietary plug)

​
Package Information

• 4K (3840 x 2160) Front Cam + Quad HD (2560 x
  1440) Rear Cam
• In Dual Camera Mode, both cameras max
  recording resolution is 2560 x 1440 Wide Quad
  HD. Rear cam can be turned off in menu setting
  to enable front cam 4K recording.
• Built-in Wi-Fi for Smartphone App (iOS 9.0+ &
  Android 5.0.2+)
• PC Viewer for Windows & Mac​
