JVC, FULL-HD-DASHCAM FEATURING INTEGRATED GPS, BUILT-IN WI-FI, FULL HD RECORDING, 3-AXIS G-FORCE SEN

General Specifications:

• With 1920 x 1080 Full HD recording, detailed information including license plates can be recorded more clearly.
• The built-in WDR (Wide Dynamic Range) helps to reduce headlight glare or shadows that may occur in high contrast situations, such as in a backlit environment, or near the entrance or exit of a tunnel.
• Simply install the “JVC DVR Link” app on your smartphone and you’ll be able to connect the KV-DR305W to your smartphone via Wi-Fi.
• A variety of operations can be controlled easily from your smartphone. Available functions include “Preview” to view streamed images while recording on your smartphone, still image recording, downloading of recorded data to your smartphone, and controlling various settings of the KV-DR305W.
• The KV-DR305W offers three recording modes to accommodate various situations.
  • 1: “Continuous Recording*” to automatically record and stop in conjunction with the engine ON/OFF,
  • 2: “Manual Recording” to start recording anytime you want and save it as data that cannot be overwritten, and
  • 3: “Event Recording” to automatically start recording when a sudden impact or a sudden speed change is detected by the “G-Force sensor”.
• The G-Force Sensor is built-in to detect impact to the vehicle body. Its 3-axis sensor is able to detect sudden movements from three directions: front/back, left/right, and top/bottom.
• The KV-DR305W is also equipped with a GPS system that measures your vehicle’s location information such as speed, latitude, and longitude. The driving record can be displayed on the dedicated PC linked software.
• The KV-DR305W features a wide angle lens of 114°. With a secured wide-angle view, you can judge the occurrence of an accident more objectively. The F2.0 lens performance assures precise, high-quality images.​

Technical Specifications:

• Image Sensor
  • Type: 1/2.7 Color CMOS sensor
• Lens
  • Aperture: F2
  • Angles of view:
    • Horizontal : 98˚
    • Vertical : 52˚
    • Diagonal : 114˚
• Monitor
  • Type: Color
  •  Size: 2.7 inches color TFT
• Memory
  • External: Yes
  • Number of Slots: 1

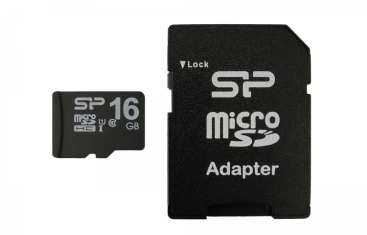

  • Recording Media: microSDHC card 4GB to 32GB (Class 10 or above)
• File Format
  • Video Format: H.264 (MP4)
  • Picture Format: JPEG (Max. 1920 x 1080)
• Resolution
  • Recording Resolution: 1920 x 1080 Full HD (Max. 2.0M)
  • Frame Rate: 30 fps
  • Photo Resolution: 2M Pixels (1920 x 1080)
• Recording Mode
  • Recording preservation timing: Continuous / Event
  • Video crip length: 1 / 3 / 5 min.
• General
  • Wi-Fi: Built-in
  • G-sensor: Built-in
  • Collision sensitivity: 0.5G to 3G (0.5G step)
  • Operating Voltage: DC 5.0V
  • Current Consumption: 480mA (Max. 1A)
  • Operating Temperature: -10˚C to +60˚C
  • USB Port: Mini USB-B type

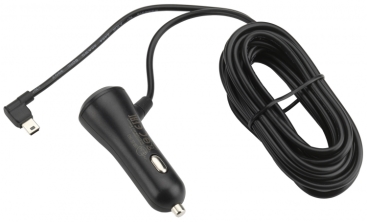

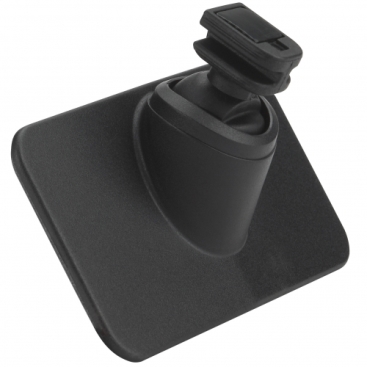

  • Accessories: Car charger cord (11-1/2″) x 1, Mounting bracket (double-sided tape) x 1
• Dimensions / Weight
  • Dimensions WxHxD (Main unit): 3-1/4″ x 2-1/16″ x 1-1/4″ (83mm x 52mm x 32mm)
  • Weight (Main unit): 3.1oz (87g)​​​​​​​
