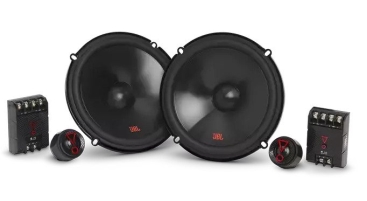

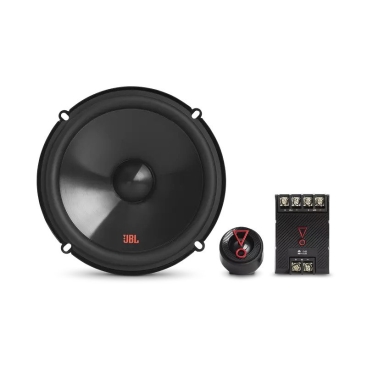

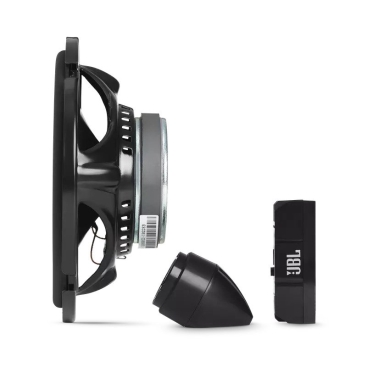

JBL 6-1/2″ STAGE3 SERIES 2-WAY 3-OHM COMPONENT CAR SPEAKERS – 300W PEAK

Ultimate Car Audio by JBL

JBL Stage3 speakers bring patented technologies, world-class engineering and JBL pro sound heritage together to create a powerful line of car audio loudspeakers. Focusing on performance and fitment, they bring unrivaled sound performance to your vehicle. The high output 2 ohm DCR design extracts every watt of power from the amplifier or head unit enabling the patented Plus One™ woofers to deliver high output and solid deep bass performance. Our rigorous OEM-level reliability testing provides peace of mind when it’s time to crank it up for that inimitable JBL adrenalin surge.

Specifications:

• 6-1/2″ JBL Stage3 Series 2-way Component System Car Speakers
• Power Handling:
• Peak: 300 watts per set / 150 watts each side
• RMS: 100 watts per set / 50 watts each side
• Plus One™ polypropylene woofer cones
• Dome Tweeters
• External Crossover with 0/+3dB Tweeter level control
• Vented basket frame design
• Top-mount Depth: 1.91″
• Cutout Dimensions: 5″
• Impedance: 3 ohms
• Frequency Response: 55 – 20,000 Hz
• Sensitivity: 92 dB @2.83V
• Free-Air Resonance (Fs): 75.6 Hz
• Equivalent Compliance (Vas): 8.63 liters
• Total Speaker Q Value (Qts): 1.317
• Electrical Q Value (Qes): 1.482
• Mechanical Q Value (Qms): 11.84
• Crossover Point: 5,000 Hz

What’s in The Box?

• 2 x Speakers

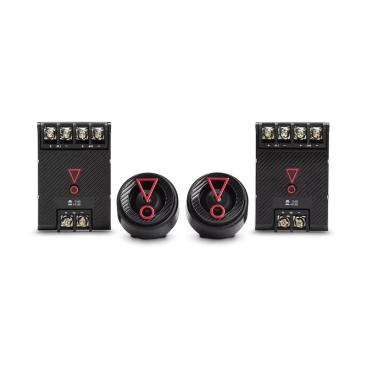

• 2 x Crossovers
• 2 x Tweeters
• 2 x Flush-mount cups
• 2 x Surface-mount cups
• 6 x Screws
