IDATALINK MAESTRO, DASH & WIRING KIT FOR RECEIVERS W/ 8″ SCREEN IN SELECT 2014–20 GM VEHICLES

Specifications:

• Install an 8″ Kenwood or JVC radio in select 2014–20 GM vehicles

• Requires Maestro RR or RR2 module

• Retains factory dash look

• Keeps key factory features (if equipped):

• OnStar & Bluetooth hands-free

• Steering wheel audio controls

• Backup camera with dynamic parking lines

• Secondary vehicle display

• USB ports

• Factory climate controls/settings via new screen

• Adds new features:

• Vehicle info display

• Selectable performance gauges (“Track Pack”)

• Read/reset check engine codes

• Provides power and signal outputs:

• 12V/15A accessory power

• Illumination, parking brake, reverse, and VSS outputs

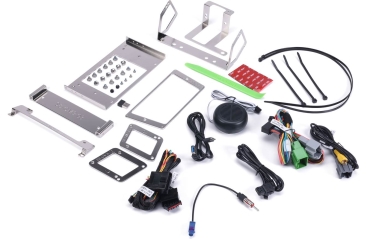

• What’s in the Box:

• APX-S8-GM3 Dash & Wiring Kit
• Owner’s manual

• 8 mounting brackets (various types)
• Vehicle/interface harness

• Backup camera harness

• External chime

• OBDII connector harness

• USB-C to USB-A cable

• USB-C cable

• Antenna adapter

• 3 short cable ties

• 3 long cable ties

• 3M tape

• Pry tool

• Screws:

• Ten M5x6mm

• Six M5x8mm

• Four M4x5mm

• Two M4x5mm

• One “GND” screw

• USB dongle

• Quick Start Guide
