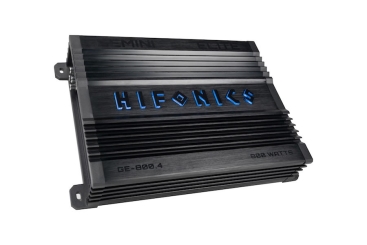

HIFONICS 800 WATTS GEMINI ELITE FOUR CHANNEL CAR AUDIO AMPLIFIER.

Hifonics GEMINI Elite Four Channel audio amplifier delivers 800 watts with Hifonics High Fidelity that features Simpatico coil design (SPC) Ultra-Fi Pulse Width Modulated MOSFET power supply.

Specifications:

• CLASS: Super A/B Class™
• TOTAL CHANNELS: 4
• POWER @ 1 OHM (CH X WATTS): N/A
• POWER @ 2 OHMS (CH X WATTS): 4 x 200
• POWER @ 4 OHMS (CH X WATTS): 4 x 100
• MONO BRIDGED @ 4 OHMS (CH X WATTS): 2 x 400
• CROSSOVER: Variable Electronic 12dB Per Octave
• VARIABLE HIGH PASS CROSSOVER 12DB PER
• OCTAVE: 40Hz-300Hz
• VARIABLE LOW PASS CROSSOVER 12DB PER
• OCTAVE: 40Hz-300Hz
• TONE CONTROL/PARAMETRIC EQ: Built-in bass control
• BASS BOOST: 0-9dB
• VARIABLE VOLTAGE: .2 to 6V
• FREQUENCY RESPONSE: 10Hz-22kHz
• TOTAL HARMONIC DISTORTION (THD): < 0.5%
• SPEAKER LEVEL AUDIO INPUTS: Yes
• POWER TERMINAL 12V/GND: 4 AWG
• SPEAKER TERMINAL WIRE GAUGE: 12 AWG
• FUSING: 40A

Features

• LOW NOISE PREAMPLIFIER CIRCUIT: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
• RCA INPUTS: Nickel plated high temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
• HIGH LEVEL INPUTS: Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power.
  OPERATION MODE: Four Channel, Full Range, Bridgeable: Flexible installation allows this amplifier to run in four channel or bridged mono mode.
• CROSSOVER TYPE: Variable Electronic: Electronic crossovers allow for complete control of the sound. See specifications for specific frequencies.
• ELECTRONIC EQUALIZER: Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
• CLASS/TOPOLOGY: Super A/B Class™: Super A/B Class™ has been refined over three decades of engineering to deliver the highest level of sound quality and power efficiency. Even at very high listening levels, Hifonics Super A/B Class™ circuitry results in a smooth and linear high end with lower distortion, plus higher current efficiencies and less heat buildup.
• OUTPUT DEVICE TECHNOLOGY: Ultra-Fi™ MOSFET: Produces high power with minimal distortion.
• HEAT SINK: High Grade Aluminum: Heavy duty aluminum alloy heat-sink allows amplifier to quickly dissipate heat while producing maximum power.
• POWER SUPPLY: Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.
• OUTPUT CONNECTIONS: RCA Outputs: Daisy chain multiple amplifier to eliminate additional signal cables from the source unit.
• CONNECTION TYPE: Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.
• LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS: Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.​
