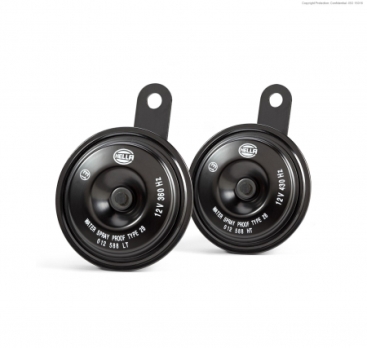

HELLA, CLASSIC HORN SET, 12V, 110 DB

Specifications:

Functional Principle : Horns are powered by the battery current signal, which is commonly handled by a voltage pulse sent from the steering wheel. The current signal is transferred to a relay, which transmits the entire control current, preventing voltage drops. As the horn is powered by the electric current, it forms a magnetic field, which attracts a metal core together with a steel diaphragm. This attraction causes vibrations, which are transformed by varying resonances in order to gain low or high tones.

Nominal Voltage : (1) 7 – 12 V: for automotive vehicles, agricultural machinery, construction machinery, etc. (2) 7 – 24 V: for commercial vehicles, buses, municipal vehicles, etc.

• Application – Universal
• Diameter (mm) – 77
• Rated Voltage -12 V
• Current – Max 4.0 Amp
• Frequency 360/430 Hz
• Sound 110 dB(A)
