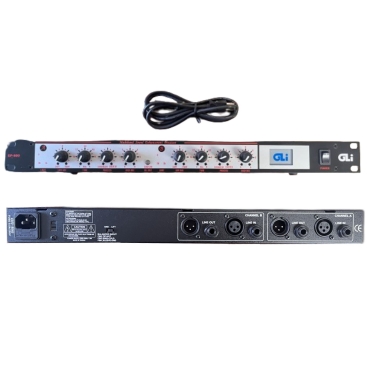

GLI PRO, SP-600 MULTIBAND SOUND ENHANCEMENT PROCESSOR

Specifications:
Audio Input:

• Connectors: 1/4″ jack and XLR jack
• Type: RF filtered, servo balanced input
• Impedance: 60 kOhms balance
• Max. Input Level: +21 dBu balanced
• CMRR: typ. 40 dB, >55 dB @ 1 kHz

Audio Output: ​

• Connectors: 1/4″ jack and XLR jack
• Type: Balance output stage
• Impedance: 200 Ohm balance
• Max. Output Level: +25 dBu, 24 dBm

System Specifications:​

• Bandwidth: 20 Hz to 20 kHz, +0/-0.5 dB
• Frequency Response: 2 Hz to 100 kHz, +0/-3 dB
• Noise: >95 dBu, unweighted, 22 Hz to 22 kHz
• THD: 0.008% typ. @ +4 dBu, 1 kHz, Gain 1
• THD: 0.04% typ. @ +20 dBu, 1 kHz, Gain 2
• IMD: 0.01% typ. SMPTE
• Crosstalk @ 20 kHz: Better than -83 dB

Low Band Processor:​

• Type: “Dual Mode” bass processor
• Low Mix Control: Variable from “SOFT” to “TIGHT”

High Band Processor:​

• Type: “Natural Sonic” Processor
• Tune Control: Variable from 1 to 9 kHz
• Process Control: Variable from “Enhancer” to “Exciter”
• High Mix Control: Variable from (0 to 6)

Function Switches and Controls:​

• In/Out: Switch to bypass the enhancer function
• Phase (RSE-100 sub): sub-out polar reverse 180°
• Low Cut (RSE-100 sub): Activates 30 Hz Butterworth, 12 dB/octave high – pass filter

Limiter (Without RSE-100C):​

• Threshold: Variable from -20 to +25 dBu
•  Attack: 8 m/sec
• Release: 1 sec

​Subwoofer (RSE-100): ​

• Sub Control: Variable from 0 to max
• Frequency Range: Variable from 50 Hz to 250 Hz butterworth, 12 dB/octave

​Indicators: ​

• Function Switch: LED indicator for each function switch
• Output Level (RSE-100A): 5-segment LED display: -23/-17/-10/0 dBV and Clip (6 dBV)

Power Supply:​

• Main Voltages: USA/Canda ∼120V AC, 60 Hz
• U.K./ Australia ∼240 V AC, 50 Hz
• Europe ∼230 V AC, 50 Hz
• General Export Model ∼100 – 120 V AC, ∼200– 240 V AC, 50 – 60 Hz
• Fuse: 100 – 120 V AC: 500 mA (slow – blow)
•            200 – 240 V AC: 500 mA (slow – blow)
• Power Consumption: 9 Watts
• Main Connect: Standard IEC receptacle

Physical:​

• Dimension: 1 3/4″ (44.5mm) x 19″ (482.6 mm) x 8 1/2″ (217mm)
• Net Weight: 3.0 kg
• Shipping Weight: 4.2 kg

​
