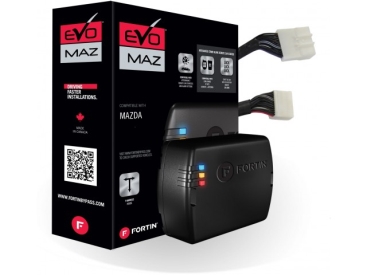

FORTON EVO ALL REMOTE START W/ T-HARNESS FOR MAZDA SELECTED MODELS

Name: FORTON EVO ALL REMOTE START W/ T-HARNESS FOR MAZDA SELECTED MODELS
SKU: EVO-MAZT1
Availability: OutOfStock

$61.00

PRELOADED MODULE & T-HARNESS COMBO FOR 2013+ MAZDA PUSH-TO-START VEHICLES.

Out of stock

SKU: EVO-MAZT1 Category: Uncategorized Tag: import

The EVO-MAZT1 is the ultimate Factory Fit, ALL-IN-ONE data immobilizer bypass, doorlock, alarm & remote start interface with T-Harness combo module for 2013+ Mazda vehicles. It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple bus architecture with 10 separate communication ports that provide more complete functionality on every supported vehicle.

PRODUCT DESCRIPTION:

Reduced Install time and hardware cost.
– Pre-loaded Firmware
– No diodes needed (saving 5 diodes)
– No relays needed (saving 1 relay)
– Saves time with 20 less wires to connect
Vehicle specific install guides with colored pictures.
OEM remotes remain functional while vehicle is running
Easy vehicle take-over

PRODUCT FEATURES:

– 3 x On-board LEDs for simplified programming and diagnostics.
– 1 x Preloaded firmware for maximum compatibility. [1]– 1 x Factory Fit T-Harness for easy install.
– 1 x 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems. [2]– 1 x 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.
– Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.
– Immobilizer Bypass
– Standalone Remote Start
– Built-In Aftermarket Alarm
– Door Locks Control
– Parking Lights Control
– Door Status
– Trunk Status
– Hood Status
– Brake Pedal Status
– E-Brake Status
– Tachometer Status
– OEM Remotes Monitoring
– Factory Alarm Disarm
– Dual Stage Shock Sensor Input
– 3 x LOCK START
– T-Harness

SUPPORTED VEHICLES:

– Mazda 3 Push-To-Start (Automatic) 2014-2016
– Mazda 6 Push-To-Start (Automatic) 2014-2016
– Mazda CX-3 Push-To-Start (Automatic) 2016
– Mazda CX-5 Push-To-Start (Automatic) 2013-2016

EXTENDED CONNECTIVITY:

– Compatible with long range RF kits
– Compatible with smartphone apps
– Compatible with aftermarket remote starters and alarm systems

PRODUCT SPECIFICATIONS:

– 3 x CAN-Bus controllers.
– 3 x General purpose controllers (J1850, Class 2, encrypted key etc.).
– 1 x On-board relay (SPDT).
– 1 x On-board relay (DPDT).
– 1 x Analog controller 0-12VDC @ 20mV steps (MUX).

PARTS INCLUDED:

– 1 x EVO-ALL control module (firmware preloaded). [3]– 1 x Warning label. [3]– 1 x 20 Pin general purpose harness. [4]– 1 x 4 Pin Fortin 2-way data-link harness.[2]– 1 x Factory Fit T-Harness. [4]

Click Here For More Information
