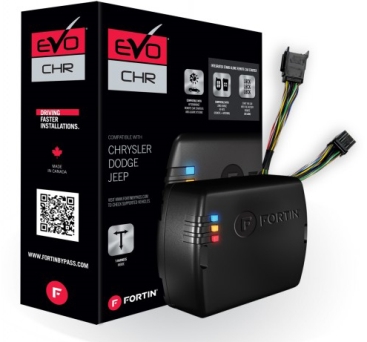

The EVO-CHRT4 is the ultimate Factory Fit, ALL-IN-ONE data immobilizer bypass, doorlock, alarm & remote start interface with T-Harness combo module for Chrysler, Dodge, Jeep and Volkswagen Tip Start vehicles. It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple bus architecture with 10 separate communication ports that provide more complete functionality on every supported vehicle.
• Includes T Harness Cable & Preloaded Interface Module
• No external remote start or Alarm required
• NEW! Built-In Alarm
• Connect Compatible RF Kits Directly Into INterface Module for longer range
• Compatible with all aftermarket remote starter modules and alarm systems
• Control vehicle functions with Smartphone app by Compustar Drone
PRODUCT FEATURES
3 x On-board LEDs for simplified programming and diagnostics.
1 x Preloaded firmware for maximum compatibility. [1]1 x Factory Fit T-Harness for easy install.
1 x 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems. [2]1 x 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.
Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.
Connect Compatible RF Kits Directly Into INterface Module for longer range
Compatible with all aftermarket remote starter modules and alarm systems
Control vehicle functions with Smartphone app by Compustar Drone
NEW! Built-In Alarm
No external remote start or Alarm required
PRODUCT SPECIFICATIONS
3 x CAN-Bus controllers.
3 x General purpose controllers (J1850, Class 2, encrypted key etc.).
1 x On-board relay (SPDT).
1 x On-board relay (DPDT).
1 x Analog controller 0-12VDC @ 20mV steps (Parking lights, MUX).
PARTS INCLUDED
1 x EVO-ALL control module (firmware preloaded). [3]1 x Warning label. [3]1 x 20 Pin general purpose harness. [4]1 x 4 Pin Fortin 2-way data-link harness. [2]1 x Factory Fit T-Harness. [4]LEGEND
[1] A firmware update may be required for the module to support newest vehicles.[2] Using the 2-way datalink port with an equipped remote-starter, security-system or RF-KIT greatly simplifies installation.[3] Updated firmware and installation guides are posted on a regular basis. We recommend that you update this module to the latestfirmware and download the latest installation guide(s) prior to the installation of this product.[4] Secure Clip Harness.
Available Features
Built-in features for installations.
BUILT-IN ALARM SYSTEM
3X LOCK REMOTE STARTER
REMOTE STARTERS
Features for remote-starter installations.
PUSH TO START IGNITION
ELECTRONIC IGNITION IMMOBILIZER SYSTEM
FACTORY ALARM
DOOR LOCKS TRUNK (OPEN)
DOOR STATUS
HOOD STATUS
TRUNK STATUS
TACHOMETER
HAND-BRAKE STATUS
FOOT-BRAKE STATUS
RETAINED ACCESSORY POWER
T-HARNESS
OEM REMOTE MONITORING
UNLOCK DRIVERS DOOR ONLY
ALARM SYSTEMS
Features for Alarm system installations.
FACTORY ALARM
DOOR LOCKS
TRUNK (OPEN)
DOOR STATUS
HOOD STATUS
TRUNK STATUS
T-HARNESS
OEM REMOTE MONITORING
UNLOCK DRIVERS DOOR ONLY
GPS SYSTEMS
Features for Global Positioning Satellite (GPS) systems.
TACHOMETER
FOOT-BRAKE STATUS
