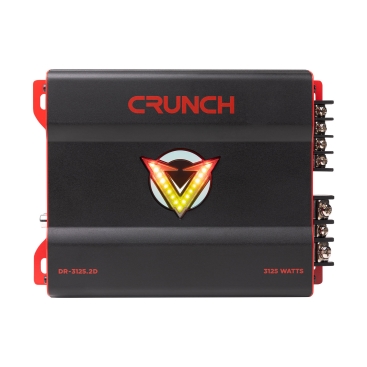

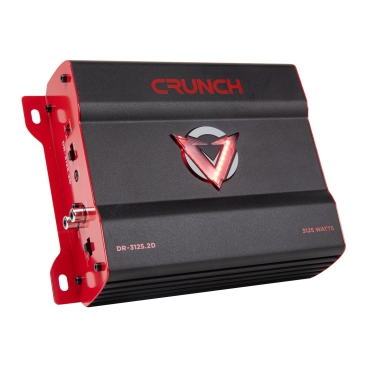

CRUNCH, V-DRIVE 3125 WATT TWO CHANNEL AMPLIFIER

Name: CRUNCH, V-DRIVE 3125 WATT TWO CHANNEL AMPLIFIER
SKU: DR-3125.2D
Price: 74.00 USD
Availability: InStock

$74.00

Crunch V-Drive: low noise preamp, RCA inputs, Class D, adjustable crossover, LED diagnostics, logo modes.

SKU: DR-3125.2D Categories: 2-Channel Amps, Amplifiers, Car Audio Tag: import

Specifications:

Amp Class: Class D
Amp Total Channels: 2
Amp Max Power (watts): 3125
Amp Power @ 2 Ohms (ch x watts): 2 x 1560
Amp Power @ 4 Ohms (ch x watts): 2 x 780
Amp Mono Bridged @ 4 Ohms (ch x watts): 1 x 3125
Amp Crossover: Variable Electronic 12dB Per Octave
Amp Variable High Pass Crossover 12dB per Octave: 40Hz-400Hz
Amp Variable Low Pass Crossover 12dB per Octave: 40Hz-400Hz
Amp Variable Voltage: 0.2-6V
Amp Signal to Noise: >100dB
Amp Frequency Response: 20Hz-20kHz
Amp Total Harmonic Distortion (THD): < 0.5%
Amp Speaker Level Audio Inputs: RCA
Amp Power Terminal 12v/GND: 4 AWG
Amp Speaker Terminal Wire Gauge: 8 GA
Amp Fusing: External 125A

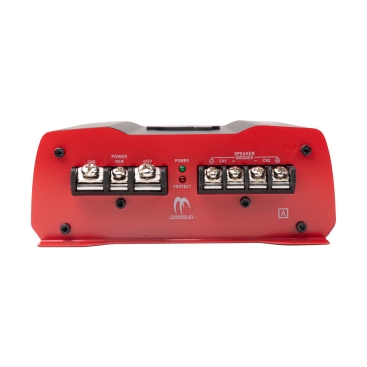

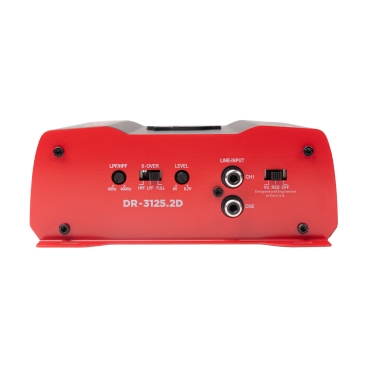

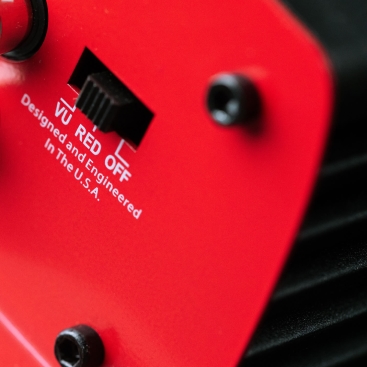

The Crunch V-Drive amplifier features a low noise preamplifier for minimal distortion and high-quality RCA inputs. It supports stereo, bridged mono, and combined modes, with fully adjustable 12dB crossovers and an electronic equalizer for precise frequency control. Its efficient Class D design and Crunch SPEED-FET MOSFETs enhance power and sound quality. The QTD Technology aluminum heat sink keeps it cool, and the PWM power supply minimizes impact on the vehicle’s electrical system. Nickel-plated brass terminals and screw-down connectors ensure secure connections, while LED diagnostics monitor protection. Additional features include selectable logo illumination modes for customizable lighting effects.
