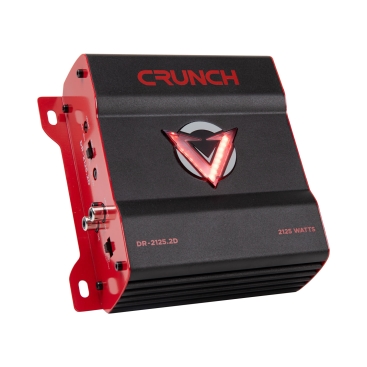

CRUNCH, V-DRIVE 2125 WATT TWO CHANNEL AMPLIFIER

Specifications:

• Amp Class: Class D
• Amp Total Channels: 2
• Amp Max Power (watts): 2125
• Amp Power @ 2 Ohms (ch x watts): 2 x 1060
• Amp Power @ 4 Ohms (ch x watts): 2 x 530
• Amp Mono Bridged @ 4 Ohms (ch x watts): 1 x 2125
• Amp Crossover: Variable Electronic 12dB Per Octave
• Amp Variable High Pass Crossover 12dB per Octave: 40Hz-400Hz
• Amp Variable Low Pass Crossover 12dB per Octave: 40Hz-400Hz
• Amp Variable Voltage: 0.2-6V
• Amp Signal to Noise: >100dB
• Amp Frequency Response: 20Hz-20kHz
• Amp Total Harmonic Distortion (THD): < 0.5%

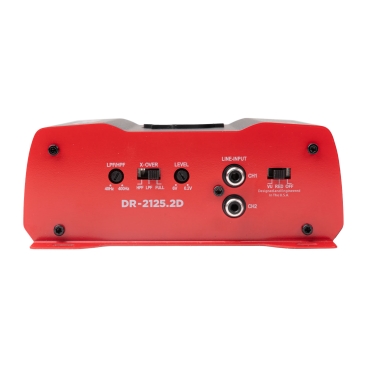

• Amp Speaker Level Audio Inputs: RCA

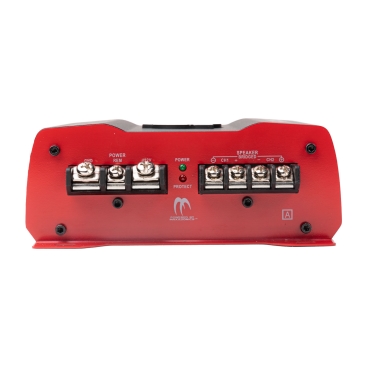

• Amp Power Terminal 12v/GND: 4 AWG
• Amp Speaker Terminal Wire Gauge: 8 GA
• Amp Fusing: External 100A

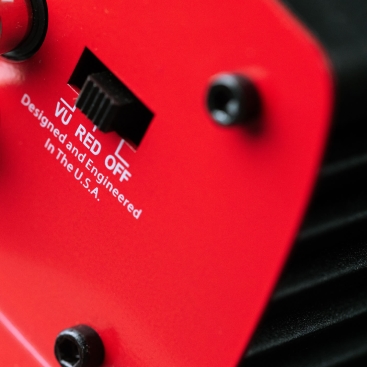

The Crunch V-Drive amplifier features a low noise preamplifier circuit for minimal distortion, high-quality RCA inputs, and versatile operation modes including stereo, bridged mono, and simultaneous configurations. It offers fully adjustable 12dB crossovers and an electronic equalizer for precise frequency control. With an efficient Class D design, Crunch SPEED-FET MOSFETs enhance power and sound quality, while QTD Technology aluminum heat sinks ensure cool operation. The PWM power supply minimizes vehicle electrical strain, and nickel-plated brass terminals with screw-down connectors ensure secure, corrosion-resistant connections. LED diagnostics monitor protection, and selectable logo illumination modes provide customizable lighting effects.
