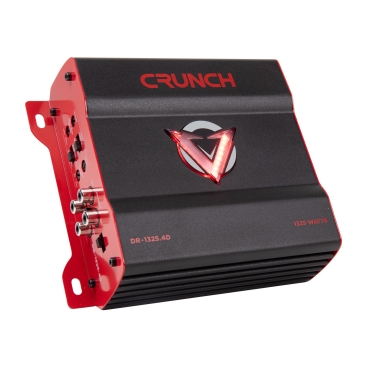

CRUNCH, V-DRIVE 1325 WATT FOUR CHANNEL AMPLIFIER

Specifications:

• Amp Class: Class D
• Amp Total Channels: 4

• Amp Max Power (watts): 1325
• Amp Power @ 2 Ohms (ch x watts): 4 x 330
• Amp Power @ 4 Ohms (ch x watts): 4 x 165
• Amp Mono Bridged @ 4 Ohms (ch x watts): 2 x 660

• Amp Crossover: Variable Electronic 12dB Per Octave
• Amp Variable High Pass Crossover 12dB per Octave: 40Hz-400Hz
• Amp Variable Low Pass Crossover 12dB per Octave: 40Hz-400Hz
• Amp Variable Voltage: 0.2-6V
• Amp Signal to Noise: >100dB
• Amp Frequency Response: 20Hz-20kHz
• Amp Total Harmonic Distortion (THD): < 0.5%
• Amp Speaker Level Audio Inputs: RCA
• Amp Power Terminal 12v/GND: 4 AWG
• Amp Speaker Terminal Wire Gauge: 8 GA
• Amp Fusing: External 60A
• Dimensions: 6.85″ L x 5.83″ W x 2.2″ H
• Weight: 3.41 lbs

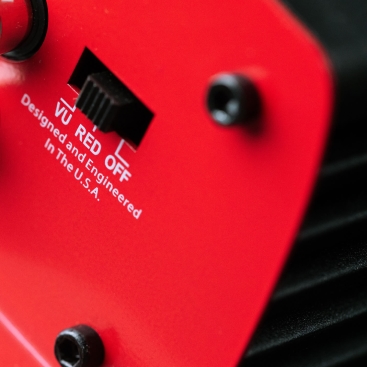

The Crunch V-Drive amplifier boasts a low noise preamplifier circuit for minimal distortion, high-quality RCA inputs for superior sound, and versatile operation modes including four-channel stereo and various bridging configurations. It features fully adjustable 12dB crossovers and an electronic equalizer for precise frequency tuning. Its Class D design ensures efficiency and compact size, while Crunch SPEED-FET MOSFETs enhance power efficiency and sound quality. The QTD Technology aluminum heat sink maintains cool operation, and the PWM power supply minimizes impact on the vehicle’s electrical system. Nickel-plated brass terminals and screw-down connectors ensure secure, corrosion-resistant connections. LED diagnostics monitor protection, and selectable logo illumination modes add customizable lighting effects.
