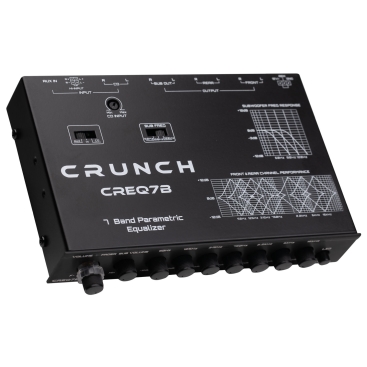

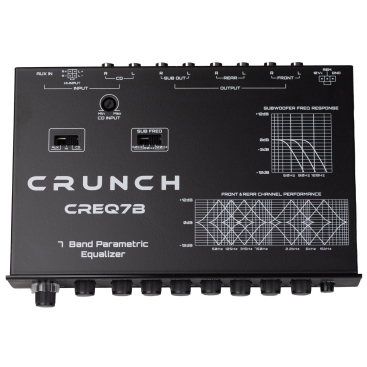

CRUNCH 7-BAND PARAMETRIC EQUALIZER WITH 9 VOLT LINE DRIVER

This unit has both a pre-amp equalizer and Crossover to provide the multi-speaker system of your vehicle with omproved sound performance.

Features

• Illuminated red control knob leds
• Low and high level audio inputs (speaker level)
• Designated subwoofer unbalanced output
• Subwoofer x-over frequency control
• Input level control adjustment
• Fader control
• Half din chassis size
• Mounting hardware (included)
• Seven equalization bands each adjust +/- 12db

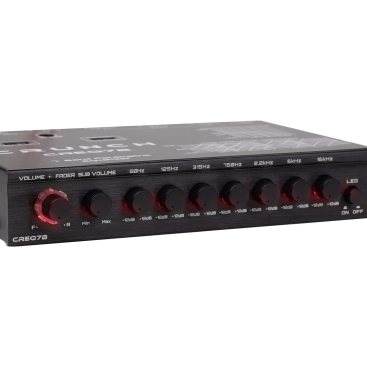

• Separate controls for master volume, subwoofer volume, front/rear fader and selection of main or aux inputs

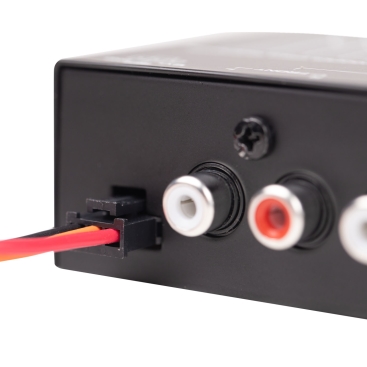

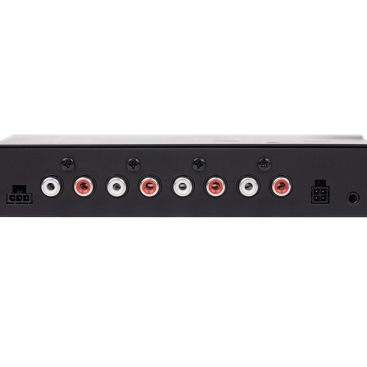

• 3 stereo RCA outputs to drive front, rear and subwoofer audio amplifiers
• Subwoofer output uses a built-in 18db per octave electronic crossover fixed at 80Hz or 120Hz
• ½ DIN ISO mount included, this can be installed right in the dash of your vehicle.

Specifications

• Output channels (left/right) front/rear/subwoofer

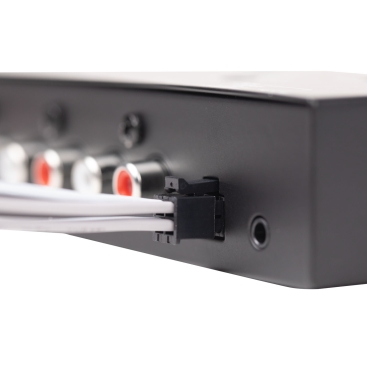

• Input channels (left/right) rca/cd, high level, aux 3.5mm
• Input range of gain control (db) >40
• Maximum input voltage (v) >10
• Input impedance (k-ohms) >20
• Maximum output voltage >9
• Volume gain (db) >85
• -3db low pass frequency (hz) 60>80>120
• Low pass/high pass slope/octave 12
• Equalization frequencies (hz) 50,125,315,750,2.2khz,6khz,16khz
• Equalization cyt or boost (db) 12
• Distortion at 1khz – 1v (%) .01
• Channel separation at 1khz (db) >80
• Signal to noise ratio (db) >100
• Frequency response (hz) (-1db) 10-20k

Compatible Vehicles:

• Universal
