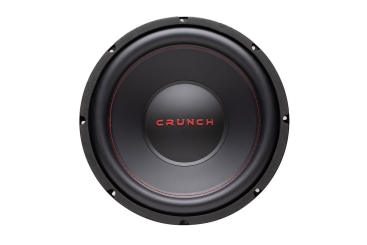

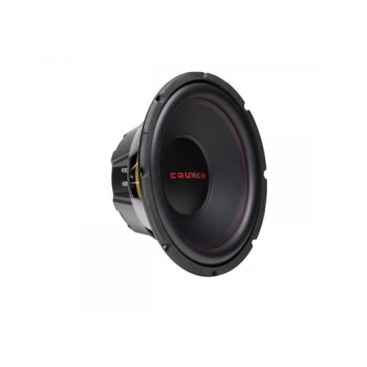

CRUNCH, 12″ SUBWOOFER 800W MAX / 400W RMS, 4 OHM DVC

Specifications:

• CONFIGURATION: Round
• VOICE COILS: 2
• IMPEDANCE (OHMS): 4 ohms x 2
• RMS POWER HANDLING (WATTS): 400
• PEAK POWER HANDLING (WATTS): 800
• CUT-OUT (IN): 10.94
• MOUNTING DEPTH (IN): 5.61
• OUTSIDE DIAMETER (IN): 12.25
• MOUNTING HEIGHT WITH GRILL & GASKET (IN) : N/A
• SENSITIVITY (1 WATT/1 METER): 86dB
• ENCLOSURE RECOMMENDATION: Small Sealed or Medium – Large Vented​​​​​​​​

Features and Benefits:

• TERMINAL TYPE: Spade style terminals for easy installation
• CONFIGURATION: Round
• SURROUND / CONE COUPLING: The pressure treated foam surround along with the poly cotton spider helps keep the piston motion of the subwoofer linear and distortion free.
• VOICE COIL / FORMER ASSEMBLY: Vented aluminum former holds a 2″ voice coil while allowing the heat to be exchanged. (Less heat means less distortion)
• SPIDER: Poly cotton spider, along with the surround, allows the woofer to handle more power with minimum distortions.
• FRAME / VENTING: Heavy duty powder coated steel frame allows back venting, which exchanges heat with cool air, resulting in more power handling and increased reliability.
• MOTOR: Vented high energy motor assembly with heavy duty magnets increases power handling and increases SPL.​​​​​
