CRIMESTOPPER DVR SYSTEM WITH QUAD PROCESSOR

OVERVIEW

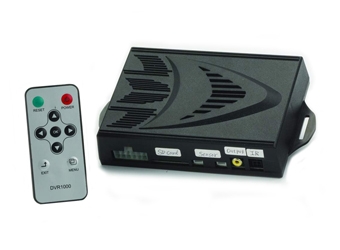

The UBB-4.CQ is a vehicle “black box” DVR system that can support up to four different cameras for simultaneous recording around the vehicle. The system has three different trigger inputs (Ignition, reverse, dome light) to activate the system and begin recording. The cameras are activated depending on the zone that is triggered at the time of the event. The ignition trigger is the primary trigger of the system which will activate all four cameras and begin recording. The reverse and dome light triggers are second and third triggers for the system. The dome light trigger will activate all four cameras as well and the reverse trigger will activate only the rear camera video signal. The dome light trigger can be integrated with any aftermarket alarm system so that if the vehicle is tampered with or broken into, the DVR will instantly activate and start recording to catch the thief in the act. The system also includes a microphone input to allow audio recording of the events as well.

The UBB-4.CQ records all events and allows the user to review them at the same time. The system has the ability to split the screen into four different quadrants to view all recordings on all triggers at the time the event took place, whether it was a car accident or a break-in. All recordings are saved on an SD card that the unit holds which can be removed for viewing. A built-in clock allows the system to give real-time accurate recordings of any event that took place.

A full functional remote is included to cycle through the system if you are viewing the recordings from a monitor in your vehicle or if you want to change any of the unit’s internal settings such as recording times, time change, or SD card setup.

Features:
Provides around-the-clock video sruveillance of the vehicle
Allows up to (4) different cameras to record simultaneously with ignition on
Built-in quad processor allows the driver to view all four cameras at once
Auto-detection of cameras: System will automatically display 1-4 cameras depending on how many are plugged in
System is activated by (3) triggers: Ignition, reverse and dome lamp
On-site playback with any aftermarket monitor
SD card can be removed to view files from a computer
Uses SD Card (32GB Max) for recording storage
Recordings are stored in (3) separate files on the SD card depending on the triggered event
Switchabel between standard recording mode or HD recording
Includes wired microphone for audio recording inside of the vehicle
Time and date is displayed on all recordings
System can be integrated with any alarm or remote start system for extra security
Multi-language setup
Full functional remote included to operate the system
