CRIMESTOPPER CMOS CAMERA FOR TOYOTA TACOMA 2007-2013

Name: CRIMESTOPPER CMOS CAMERA FOR TOYOTA TACOMA 2007-2013
SKU: SV6836TAC
Price: 154.00 USD
Availability: InStock

$154.00

170° Tailgate Handle CMOS Camera for Toyota Tacoma (2007-2013)

SKU: SV6836TAC Category: OEM Tailgate Handle Camera Tag: import

Features:

170° Wide horizontal viewing angle
Compatible with Toyota Tacoma pickup trucks (2007-2013)
Includes camera, tailgate handle and handle linkage for direct OEM swap
Reverse Image
Parking Assist Lines (Selectable)
Constructed of high-grade ABS plastic
Camera is barely noticeable once installed
Waterproof design

170° Tailgate Handle CMOS Camera for Toyota Tacoma (2007-2013)

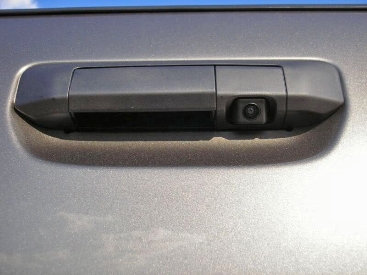

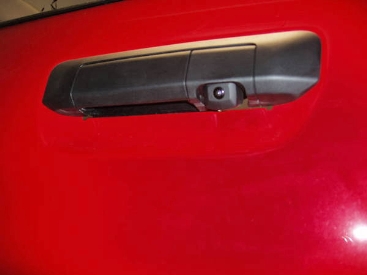

The SecurView™ SV-6836.TAC is a CMOS camera set inside a custom tailgate handle designed specifically for use on the smaller Toyota Tacoma pickup trucks. The tailgate handle completely replaces the facotry handle giving a custom camera installation without having to drill any holes or modify any exterior panels on the truck’s tailgate. This is a perfact solution for Tacoma owners who want to add a camera while still maintaining the factory look of their truck.

OVERVIEW

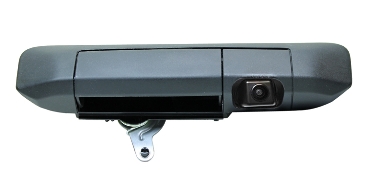

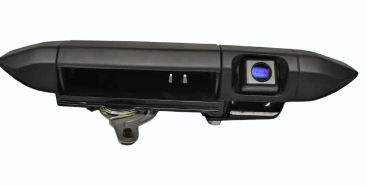

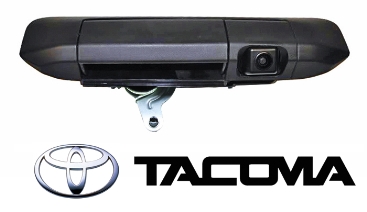

The SecurView™ SV-6836.TAC is the second model of Toyota editions to our custom truck camera products. It is a high-grade CMOS color camera embedded into a custom tailgate handle that is designed to replace the factory tailgate handle on the Toyota Tacoma pickup truck, giving you a complete reverse camera installation without having to drill any holes or modify any of the exterior panels on the truck’s tailgate.

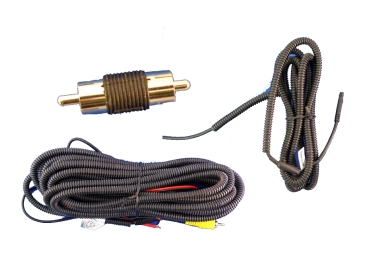

The tailgate handle molding is made of the same high-grade ABS plastic that the OEM tailgate handles are made of, so you will be getting the same quality tailgate handle as the factory provides; if not better. The camera lens is flush mounted into the handle’s molding so you will not see anything sticking out once the handle is installed. All of the handle’s linkage is the same as the factory’s so everything will be a direct swap and you should not have to modify or tweak any parts of the linkage or key lock cylinder. The only thing that will have to be done is routing the camera’s harness out of the tailgate and underneath the chassis of the truck. No panels need to be cut and no holes need to be drilled. It’s that easy. The camera harness itself comes with a long length and is pre-loomed so you can run it underneath the length of the truck without worrying about weather elements.

The camera itself uses a high-grade CMOS image sensor to give the best picture and has a wide 170° viewing angle to give the driver the absolute best view behind the truck and includes programmable parking assist lines to help the driver accurately judge the distance behind the vehicle when linking up to a trailer or for backing up in general.

SPECIFICATIONS

Image Sensor: CMOS
Dimensions: 2¼”(L) × 9¾”(W) × 1⅞”(D)
Resolution: 420 TV Lines / 648px(H) × 488px(V)
Minimum Illumination: 0.5 LUX / F1.2
Horizontal Angle: 170°
Vertical Angle: 90°
TV System: NTSC / PAL
Video Output: RCA 1.0Vp-p Composite (75 Ohm load)
Power Source:    DC 12V
Power Consumption: 150mA Max
Electronic Shutter: 1/50s – 1/100000s
Gamma Correction: 0.45
Operating Temperature: -22°F – 158°F (-30°C – 70°C)
Waterproof: IP67 – IP68
Normal / Reverse Image: Reverse Image
Parking Lines: Yes (Selectable)
Camera Cable Length:     5¾ Ft
Power Cable Length:       23¼ Ft
Video Cable Length:         23¼ Ft
