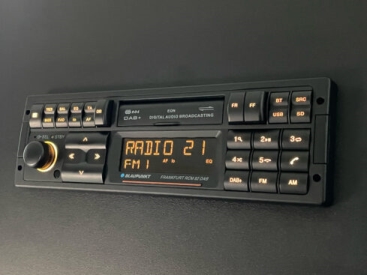

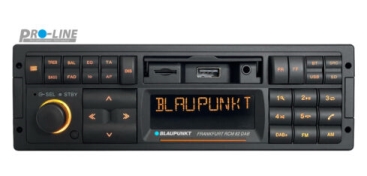

BLAUPUNKT, MECHLESS CAR STEREO BLUETOOTH USB SD AUX, 14-BAND EQ, AM/FM

Name: BLAUPUNKT, MECHLESS CAR STEREO BLUETOOTH USB SD AUX, 14-BAND EQ, AM/FM
SKU: FRANKFURTRCM82
Price: 374.00 USD
Availability: OutOfStock

$374.00

2 x 14-band equalizer / 4-channel / 4 x 50 Watt, 3-Pr Preout (4V),

Out of stock

SKU: FRANKFURTRCM82 Category: Uncategorized Tag: import

Specifications:

Radio

High-End CODEM IV World-tuner
FM, AM, DAB, DAB+ Tuner with radiotext/DLS
Traffic function
Travelstore
Service following
Introscan Presets and Band

Mediaplayer

USB (2x), microSD with MP2, MP3, WMA, FLAC, M4A (AAC), APE, WAV Support
Analog audio input on the front (AUX-IN)
Apple iPod Support

Bluetooth

Telephony via int. or ext. microphone
Audiostreaming with trackinfo
Audio mix-option for mobile navigation
Voice assistant support (e.g. Siri, Google, Alexa)
Automatically switch on when there is an incoming call (Wake-up on call)
Two phones can be connected at the same time (Twin-Connect)
Phonebook access

Sound

Digital signal processing (DSP)
2x 14-band equalizer (front and rear channels separately adjustable)
Sound presets
Loudness
4-channel pre-amp out + subwoofer preamp output
4 x 50 Watt

General

Adjustable illumination color of buttons and display (Vario Colour, 4,096 colors)
2-line display
Brightness control of display and keys (DIM function)
Direct access to all audio sources
Permanenter memory
Short body (low installation depth)
IR-remote control option, RC-10 compatible
Steering wheel remote control support (analog SWC input)

Technical specifications

RADIO ANALOG / DIGITAL
Tuner Type	High-End Automotive Tuner Blaupunkt CODEM IV
World Tuner (switchable)	EU, USA, South America, Thailand
Frequency bands	FM, AM, DAB, DAB+
Frequency band FM	87.5 – 108 MHz
Frequency band MW	531- 1602/ 530- 1710 kHz
Channels (frequency band) DAB/ DAB+	5A- 13F (174,928- 239,200 MHz)
Station memory	15x FM, 10x AM, 15x DAB
Station memory levels deactivatable	FM2, FMT, AM, AMT, DAB2, DAB3
Station display (PS)	Yes
Radiotext/ Radiotext Plus (RT/ RT+)	Yes/ No
Display DLS/ ENSEMBLE/ SERVICE	Yes/ Yes/ Yes
Alternate frequency function (AF)	Yes
Traffic Radio (TA) FM/ DAB	Yes/ Yes
RDS Time (CT)	Yes
Enhanced Oth. Netw. (EON)	Yes
Regional function (REG)	Yes
Program type identifier (PTY) FM/ DAB	Yes/ Yes
PTY Seek FM/ DAB	Yes/ Yes
Travelstore/ Number of Presets for Travelstore	Yes/ 5x FMT, 5x AMT
Band Scan + Preset Scan FM/ DAB	Yes/ Yes
Sensitivity (FM)	Two levels (lo / dx)
Noise suppression (FM)	Yes
Hi-Cut (FM)	Yes (multi-level switchable)
DAB-DAB Service following	Yes
DAB-FM Service following	Yes
Service scan	Yes
Ensemble/ Service selection	Yes/ Yes
Ensemble/ Service browsing	Yes/ Yes
Frequency response FM	30 – 15.000 Hz +/- 3 dB
Frequency response DAB	20 – 20.000 Hz +/- 3 dB

MEDIAPLAYER

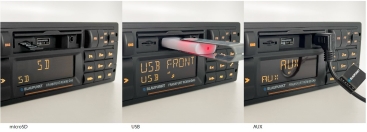

AUX front	Yes (3.5 mm jack)
AUX detection/ automatic source activation	Yes
USB front	Yes (type A, recessed jack)
USB rear	Yes (type A, cable)
Memory card reader	Yes (microSD, microSDHC, microSDXC)
Concealed front inputs	Yes (USB & microSD usable with flap closed)
Compatible file system (USB, memory cards)	FAT16, FAT32, exFAT
Maximum storage size (USB, memory cards)	> 128 GB
Maximum file/folder count (USB, memory cards)	> 30,000
Playback formats	MP2, MP3, WMA, FLAC, M4A(AAC), APE, WAV
Display options	ID3V2 (title, artist, album), folder, file, playtime
Folder & file browsing	Yes
Scrolling	Yes (single/ continuously)
iPod, iPhone control	Yes (USB front and rear)
Shuffle folder/ media	Yes/ Yes
Repeat Title/ Folder/ All	Yes/ Yes/ Yes
Mix / Repeat / Scan	Yes/ Yes/ Yes

BLUETOOTH*
Phone call	Yes
Internal microphone	Yes
Connectivity ext. microphone	Yes
Answer/ reject call	Yes/ Yes
Access phonebook	Yes (max. 1000 numbers)
Audio streaming	Yes
Audio streaming ID3 track display	Yes (Title, Artist, Album, Playtime)
Voice assistant access (e.g. Siri, Google, Alexa)	Yes
Cell phone navigation audio mix	Yes
Auto wake-up on call	Yes (when radio off + ignition on)
Fast pairing without PIN	Yes
Automatic reconnection	Yes
Bluetooth version	5.0 LE
Number of paired devices	max. last 5
No. of devices connected at the same time	max. 2 (Twin Connect)
Supported profiles	A2DP, AVRCP, HFP, SPP
Audio Codecs	aptX, AAC, SBC

*Availability/support of functions depend on the phone/app used!

SOUND
Equalizer Number of bands/design	2×14/parametric
Bass/treble adjustment	Yes / Yes (+/- 12 steps)
Source specific bass/treble adjustment	Yes
Balance/fader	Yes / Yes (+/- 12 steps)
HPF/LPF	Yes, separately for front/rear channels, variable
Loudness	Yes
Sound Presets	Yes (Rock, Pop, Classical)
Speaker Outputs (Channels)	4
Preamp Outputs (Channels, Voltage)	4 (RCA, < 4V)
Max. Power	4 x 50 watts
Sine power at 14.4 V	4 x 24 watts (according to DIN 45324)
Sub-Out	2 (RCA, gain/ frequency variable)

GENERAL
Display	LCD, negative, anti-reflective, wide angle 2 lines, Alphanumeric/Symbols
Illumination color display/keys	Vario Color, 4,096 colors
Day/Night mode	Yes (manual/via dimmer connection)
Brightness	Multi-level, variable
Time display	Yes
HMI languages	English, German
Low standby current	Yes (< 3,5 mA )
Antenna inputs	FM DIN/ ISO, DAB SMB (with 12 V phantom power)
Telephone mute	Yes
Ext. handsfree microphone connector	Yes
Remote control	Yes (IR input for RC-10 and card remote)
Steering wheel remote control (SWC)	Yes (analog, programmable, pre-programmed)
Variable scan time	Yes
Confirmation beep	Yes (can be deactivated)
Control panel type	Fixed panel
Color panel/ decor ring	Black/ Black
Software Update	via USB
Permanent Memory	Yes (Settings & Presets)
Demo mode	Yes
Weight	approx. 0.67 kg
Dimensions	50mm x 178mm x 116mm (H x W x D, housing only) 58mm x 186mm x 10mm (H x B x T, front w/o keys)
Operating voltage	10.5 – 14.4 V
Power consumption	in operation: < 10A, 10 sec. after ACC power off: < 3.5 mA

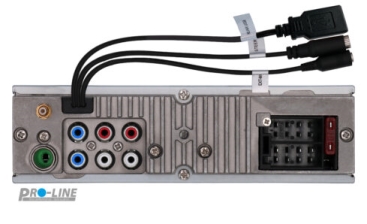

SCOPE OF DELIVERY
External BT microphone	Yes
Unlocking tool	Yes
Connectors (ISO A, B)	Yes
Antenna adaptor (DIN/ ISO)	Yes
DAB antenna	Optional accessories (e.g. 2 006 021 000 000)
IR remote control	Optional accessories
