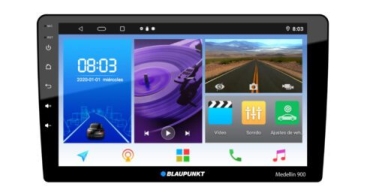

BLAUPUNKT, 9 INCH DISPLAY MULTIMEDIA, APPLE CAR PLAY & ANDROID AUTO

• Radio
  • High-end tuner ​
  • FM, AM Tuner​

• Display
  • Large 9” digital TFT Capacitive touch screen display (1024 x 600 pixels)​

  ​

• Navigation
  • Prepared for Navigation (GPS built-in)​
• Data carrier
  • 2x (Rear) USB (Standard A-type)​
• Media player
  • Audio and Video from USB​
• Bluetooth
  • Built-in Bluetooth for hands-free calling, phone book upload and audio streaming.

  Inputs / Outputs

  • A/V input​
  • Rear view camera input​
  • Video output​
  • Steering Wheel Control input ​
• Equalizer / Amplifier
  • 10-band parametric equalizer​
• Wi-Fi / Internet Access
  • Wi-Fi built-in​
• Apps install
  • Allows Android apps to be installed



  ​

 RADIO​

• Type of tuner Blaupunkt receiver​
• World tuner (switchable) Europe, OIRT, Americas, Japan​
• Wave bands FM 1, 2, 3, AM 1, 2 ​
• Band Scan Yes ​
• Search via frequency Yes ​
• Station memory 30​
• Sensitivity lo/dx​
• Frequency response (Hz) -3dB 30 – 15.000​

​

DISPLAY​

• Technology Digital​
• Type TFT Capacitive​
• Screen size 9″ ​
• Resolution 1024 x 600 pixels​
• Touchscreen Yes  ​
• Brightness adjustable Yes  ​
• Display switch off Yes ​
• Clock display 24 / 12 hours​
• Date display Yes  ​
• Wallpaper options Yes ​
• Radio system languages English, Spanish, Portuguese ​
• ​

NAVIGATION​

• Navi-ready Yes, navi apps can be installed​

​

ANDROID SMARTPHONE CONNECTION​

• Type USB​
• Mirroring Yes ​
• Control Yes ​

​

IOS (APPLE) SMARTPHONE CONNECTION​

• Type Wireless (Wi-Fi hotspot)​
• Mirroring Yes ​

​

ANDROID AUTO (VIA APP)​

• Type USB​

APPLE CARPLAY (VIA APP)​

• Type USB / Wireless

DATA CARRIER​

• Frequency response (Hz) -3dB 20 – 20.000​
• USB-removable storage USB 2.0 compatible ​
• Formatting USB  FAT, FAT 16, FAT 32​

MEDIA PLAYER​

• Video playback formats AVI, MP4, MKV, MPG, FLV ​
  Picture playback formats JPEG, JPG, PNG​
• Audio formats USB, microSD MP3, WMA, WAV​
• MP3 Title display ID3-tag (versions 1 and 2), ​
  file/folder names​
• MP3 folder/file browsing  Yes  (w/o track interruption) ​
• MP3 file search Yes  (by track number)​
• Mix Yes  (all, folder) ​
• Repeat Yes  (all, folder, track) ​
• Fast forward / fast rewind Yes  (via progress bar) ​
• Number of files up to 10.000 on MSD  ​
• Bit rate MP3  32 – 320 kBit/s​
• Bit rate WMA 32 – 192 kBit/s​
• Variable bit rates Yes ​

​

BLUETOOTH​

• Supported version Bluetooth 4.0​
• Supported profiles HFP, PBAP, A2DP​
• Audio streaming Yes  ​
• Pairing (number of devices) 1​
• Pairing code 1234 (default, changeable)​
• Hands-free calling via micro + radio speakers​
• Microphone 1 (built-in)​
• Key functions accept / hang up / reject call​
• Phone book access Yes  (up to 2.000 entries by phone)​
• History call lists Yes  (missed, dialled, received calls)

EQUALIZER​

• Number of bands 10​
• Model parametric​
• Type analogue​
• Loudness Yes ​
• Sound presets Rock, pop, classic, jazz, flat, user​
• Balance / fader Yes  / Yes  (+/- 20 steps)​
• Source specific volume USB, Radio, Bluetooth, AV-IN, Navigation​

​

AMPLIFIER​

• Number of channels 4​
• Max. power 4 x 40 Watt​
• Sinus power at 14.4 V  4 x 22 Watt​

​

INPUTS​

• Antenna 2 (Radio, GPS)​
• USB 2 Rear (A-type) Audio / Video (analogue) Rear A/V (RCA Type)​
• Rear view camera Yes  ​
• Reverse gear Yes  ​
• Handbrake Yes ​
• Steering wheel remote control  Yes  (SWC, rear, analogue, programmable via menu)​
• Power supply Yes  (cable set with ISO)​

​

OUTPUTS​

• Video out Yes  (RCA, composite) ​
• Video out sources USB, AV-IN​
• 2-channel preamp out Yes  (Front Left + Front Right, RCA, 1V)​
• Subwoofer Yes ​
• Audio channels 2​

GENERAL​

• Installation  9 inch pad type​
• Operating voltage 10,8 – 16V​
• Weight  ca. 1,30 kg​
• Depth (incl. panel + connector) ca. 75 mm​
• Depth (installation depth) 35 mm​
• Width 230 mm​
• Height 130 mm​
• Front panel fixed​
• Colour piano black​
• Illumination White ​

​

ACCESSORIES INCLUDED IN DELIVERY​

• User manual   Yes
• 3 languages: English, Spanish and Portuguese
• GPS antenna Yes  (cable length: 3 meters)​
• External hands-free micro Yes  (cable length 1,5 meters)​
• Trim ring Yes ​
• Mounting material Yes ​
• Connector cable sets Yes  Power (cable set with ISO A) ​Yes
• Speakers (cable set with ISO B) ​Yes
• Camera (RCA)​ Yes
• Reverse, brake, P-control (open wire) Yes  ​
• SWC (open wire)​
• Video-out  (RCA) Yes  ​
• Preamp (front only) (RCA) Yes  ​
• ​Fixed rear pigtail cables Yes  GPS Antenna (Coaxial type) Yes  ​
• Radio Antenna (Motorola (JASO))
