AXXESS, TOYOTA DSP INTERFACE WITH PRE-WIRED HARNESS 2010-UP

Complete Tuning Control
Installers will have full control to fine-tune each of the 10 channel outputs individually, controlled via Bluetooth® in the free smartphone app. The app makes tuning easy with a 31 band graphic EQ and up to 10ms time delay for each independent channel, in addition to two-way/three-way crossovers in-line with the EQ. Once tuning has been completed, installers can password protect their settings to prevent anyone else from adjusting and the information is stored for future recall.

Retain Features with a Built-in Interface
Utilizing Axxess’s data interface technology, the AXDSP-X goes beyond what a traditional DSP can do and retains many of the features commonly lost when upgrading a sound system. Voice prompts, parking sensor chimes and other factory chimes are retained with an adjustable volume control that many traditional DSPs cannot offer. This is a cost-effective solution for customers who want to retain their factory radio and improve their vehicle sound quality, while still retaining systems like SYNC or OnStar®.

Specifications:

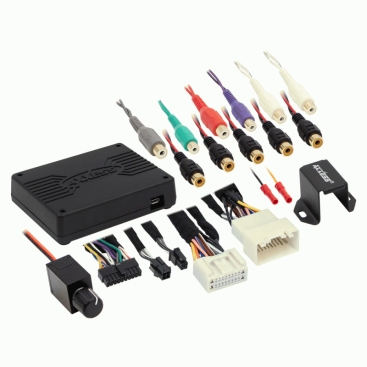

• Includes a DSP (AXDSP-X Digital Signal Processor)

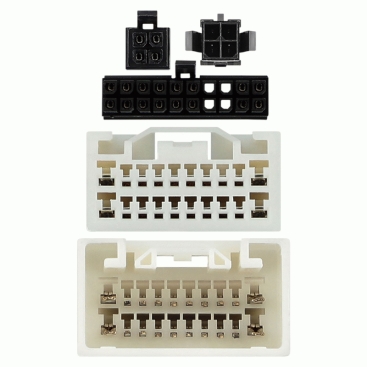

• Includes a pre-wired harness for easy installation behind the radio
• 31 band graphic EQ
• 10 individually assignable outputs
• Independent equalization on each of the 10 outputs
• Independent high pass, low pass, and bandpass filters

• Each channel can be delayed independently up to 10ms
• Designed for non-amplified models
• Bass knob included for level control of subwoofer amp
• Settings adjusted via Bluetooth® in a smart device application (tablet or mobile phone), compatible with both Android™ and Apple® devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro “B” USB updatable

Applications:

• Toyota
  • 2010 – Up
    • See the Vehicle Application Guide for vehicle specific applications
