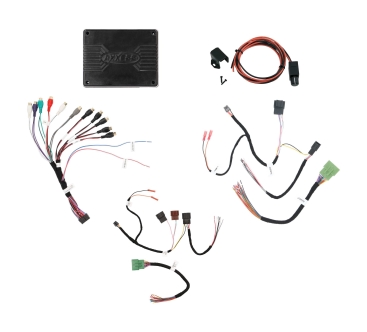

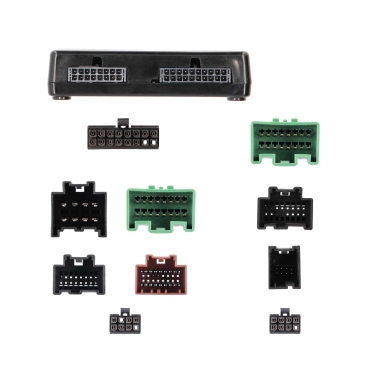

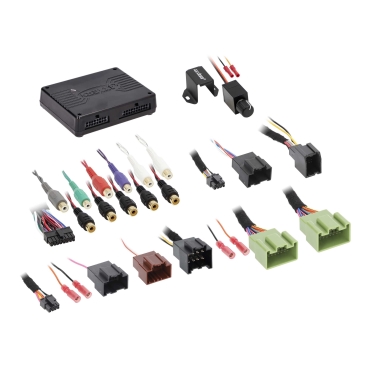

AXXESS, AXDSPX-ETH1 ETHERNET DSPX PACKAGE

Interface Features:

• Designed for GM Ethernet amplifiers
• Ethernet data interface w/AXDSP-X (digital signal processor) built-in
• Selectable 31 Band graphic EQ or 5 Band Parametric EQ
• 10 individually assignable outputs
• Independent equalization on each of the 10 outputs
• Independent high pass, low pass, and bandpass filters
• Each channel can be delayed independently up to 10ms
• Clipping detection and limiting circuits
• Retains factory chimes including parking sensor chimes
• Retains vehicle’s voice prompts
• Chimes and voice prompts go through the aftermarket amplifier and/or cluster
• Settings adjusted via Bluetooth® in a smart device application (tablet or mobile phone), compatible with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Includes an amplifier bypass harness
• Micro-B USB updatable

Vehicle Applications

Cadillac

• XT4 2019-Up

Chevrolet

• Blazer 2019-Up
• Camaro 2019-Up
• Cheyenne 2019-2021
• Colorado 2019-Up
• Equinox 2019-Up
• Malibu 2019-Up
• Silverado 1500/2500/3500 2019-2021
• Volt 2019

GMC

• Acadia 2019-Up
• Canyon 2019-Up
• Sierra 1500/2500/3500 2019-2021
• Terrain 2019-Up

​
