AXXESS, AMPLIFIER INTEGRATION INTERFACE – FITS SELECT CHRYSLER MODELS 2013-2023

Specifications:

• Provides 6 channels of 5-volt RMS audio

• Designed for amplified and non-amplified systems

• Non-fading full range output (channels 5 and 6)

• Simple plug-n-play installation behind the radio

• No programming required

• Backup chime level adjustment

• Dual-colored LED feedback light

• Input: 50W per channel

• Amp turn on trigger (DC): 250mA

• 2-channel S/PDIF out (front)

• 1-year warranty

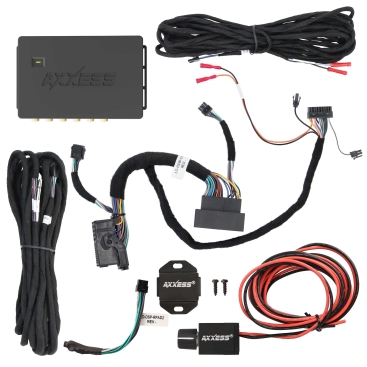

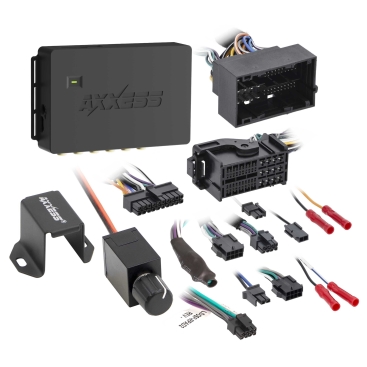

Includes

• AXAMP-CH5 amplifier Integration interface

• AXAMP-CH5 interface harness

• AXAMP-CH5 vehicle T-harness

• LD-DSP-RPAD

• LD-DSP-RPAD2

• Bass knob

• Instruction sheet

Vehicle Compatibility:​

• CHRYSLER
  – 200 2015-2017 , Passenger Dash, Up High. (Behind Glovebox).
  – 300 2015-2023 , Drivers Dash Up High. (Above Knee Bolster Panel).
  – Pacifica 2021-2022 , without separate screen , Passenger Kick Panel.
  – Pacifica 2017-2020 , Passenger Kick Panel.

• DODGE
  – Challenger 2015-2023 , Driver Kick Panel.
  – Charger 2015-2023 , Driver Kick Panel.
  – Durango 2021-2022 , without separate screen , Passenger Kick Panel.
  – Durango 2014-2020 , Driver Side Trunk, Behind Wheel Well.
  – Viper 2015-2017 , Passenger Side Trunk Above Wheel Well.

• Fiat
  – 500× 2015-2017 , Right rear corner panel

• JEEP
  – Cherokee 2014-2020 , Passenger’s Kick Panel.
  – Compass 2017-2021 , Left rear corner panel
  – Gladiator 2020-2023 , Driver Knee Bolster.
  – Grand Cherokee 2014-2022 , Driver Side Trunk Area.
  – Renegade 2015-2019 , Left rear corner panel
  – Wrangler (JL) 2018-2023 , Driver Knee Bolster.

• RAM
  – 1500/2500/3500 2013-2021 , Driver Kick Panel.
