AXXESS, AMPLIFIER INTEGRATION INTERFACE FITS CHRYSLER 2021-2024

Specifications:

• Provides 6 channels of 5-volt RMS audio

• Designed for amplified and non-amplified vehicles

• Non-fading full-range output (channels 5 and 6)

• Simple plug-n-play installation behind the radio

• No programming required

• Backup chime level adjustment

• Dual-colored LED display

• Input: 50W per channel

• Amp turn on trigger (DC): 250mA

• 2-channel S/PDIF out (front)

• 1-year warranty

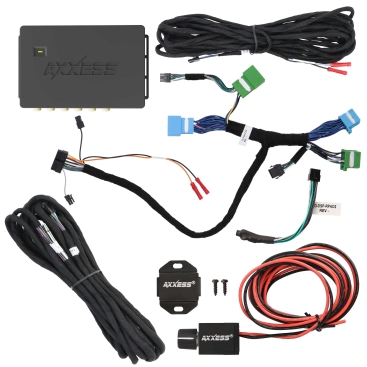

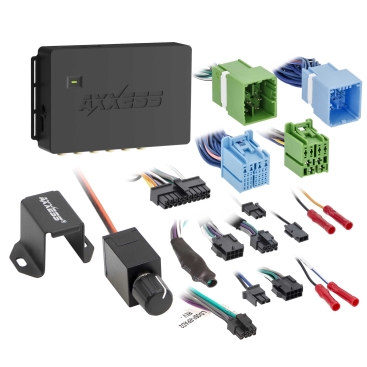

Includes: ​

• Amplifier integration interface

• Bass knob

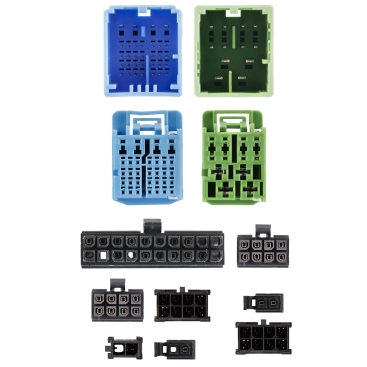

• Extension harnesses

• Vehicle-specific side harness

• Resistor pad

• Instruction sheet

Applications: ​

• Chrysler
  Pacifica 2021-2022 with separate screen
  Voyager 2022-2022

• Dodge
  Durango 2021-2022 with separate screen

• Jeep
  Compass 2022-2022
  Gladiator 2024-2024
  Wrangler JL 2024-2024

• Ram
  1500 2022-2022 RFV radio
  2500/3500 2022-2022 RFA/RFL radio
  Promaster 2022-2022

This vehicle-specific 6-channel amplifier integration interface from Axxess enables the installation of aftermarket amplifiers for enhanced sound quality while retaining the vehicle’s original radio and features. This interface includes an external bass knob for additional audio output level adjustments.
