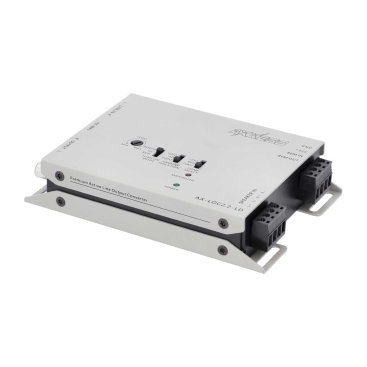

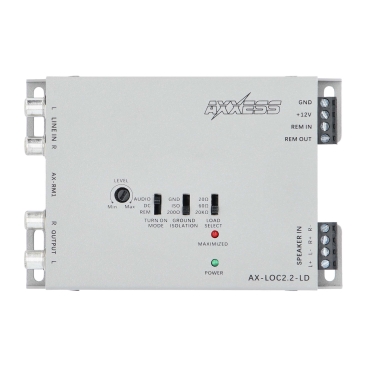

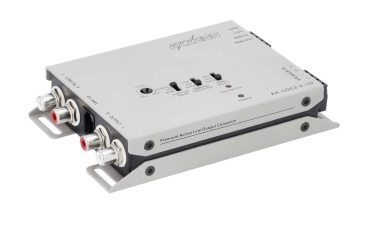

AXXESS, ACTIVE LINE OUTPUT CONVERTER WITH LINE DRIVER

Specifications:

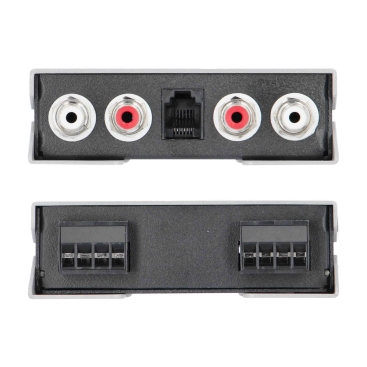

The AX-LOC2.2-LD is a line output converter and line driver all-in-one package. This unit has universal applications and enables installers to add aftermarket amplifiers to OEM source units easily and flawlessly. The LOC features incredible input power capabilities, a load selector, variable gain controls with clipping indicators, enhanced output controls, selectable ground isolation, and noise isolation countermeasures. High-level inputs mean you can tap right into your factory speaker wire for a signal, and the built-in signal sensing turns the unit on without the need to find a factory accessory lead. It also has the option of a remote turn-on output to control your amplifier. The AX-LOC2.2-LD comes with a convenient feature – it has two RCA LOW LEVEL inputs built into its design. These come in handy when the sound quality from a source unit is not up to par due to a weak low-level signal.

Features
2-channel: 2 in, 2 out
Line driver with low level input
Max input level: 40V / 400W @ 20K Ohm
Operating voltage: 9V-16V
Trigger selection: REM / DC / AUDIO
Turn on trigger (DC): 3V-7V
Output max @13.8V: 9.5V RMS
Input impedance selection: 20 / 60 / 20k Ohm
Ground selection: GND / ISO / 200 Ohm
Gain adjustment: – 28dB to +1dB
Input sensitivity: 0.5V-20V
Signal to noise: >110dB @ 6.4V output
THD+N (Total Harmonic Distortion): <0.01%
Frequency response: 20Hz-20kHz
Remote control: optional AX-RM1
