AXXESS, 2000-UP GM AUTO DETECT INTERFACE

Stock No. AX-ADGM100

00-UP AUTO DETECT GM INTERFACE

Product Details

2000-Up General Motors Amplified/Non-Amplified Interface Harness
Covers Class 2/LAN 29/LAN 11 Vehicles.
Provides Accessory (12 Volt 10 Amp).
Retains R.A.P. (Retained Accessory Power.
Used In Amplified or Non-Amplified Systems.
Retains All Warning Chimes.
Provides NAV Outputs (Parking Brake/Reverse/Mute/V.S.S.).
Retains OnStar/OE Bluetooth.
Adjustable Volume for Chimes and OnStar.
USB Updatable.
Retains Balance And Fade.
Retains Factory Back Up Camera.
Retains RSE (Rear Seat Entertainment).
Retains OE Satellite (Pending It Is Not Built Into The Radio).

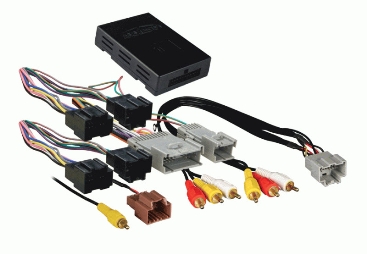

Interface Components

• AX-ADGM100 Interface • GM LAN 29 harness

• GM LAN 11 harness • Class II harness

• 4-pin to 4-pin resistor pad harness • 16-pin

harness with stripped leads • 16-pin Backup

camera harness (GMLAN29 vehicles only)

• 16-pin RSE harness (GMLAN29 vehicles only)

INSTALL / FIT GUIDE


Buick
Allure 2005-09
Enclave 2007-11
Century 2004-05
Lacrosse 2005-09
Lucerne 2006-11
Rainier 2004-07
Rendezvous 2002-07
Terraza 2005-08

Cadillac
SRX 2007-09
Escalade 2003-Up
DTS 2006-Up

Chevrolet
Avalanche 2003-Up
Cavalier 2000-05
Cobalt 2007-Up
Corvette 2005-Up
Equinox 2007-09
Express 2003-Up
Impala 2000-Up
Malibu 2001-Up
Monte Carlo 2000-07
Silverado 2003-Up
SSR 2003-06
Suburban 2003-Up
Tahoe 2003-Up
Trailblazer 2002-09
Traverse 2009-11
Uplander 2005-08
Venture 2000-05 (Less RSE)
HHR 2006-Up

GMC
Acadia 2007-11
Canyon 2004-09
Envoy 2002-09
Savanna 2003-11
Sierra 2003-Up
Yukon/Xl/Denali 2003-Up

Hummer
H2 2003-09
H3 2006-09

Isuzu
Ascender 2003-08
I Series 2006-08

Oldsmobile
Alero 2001-04
Bravada 2002-04
Intrigue 2002
Silhouette 2000-04

Pontiac
Aztec 2001-05
G5 2007-08
Grand Am 2001-05
Grand Prix 2004-08
Montana 2000-2005
Solstice 2006-08
Sunfire 2000-05
Torrent 2007-09
Vibe 2009-10

Saab
9-7× 2005-09

Saturn
Aura 2006-09
Outlook 2007-09
Sky 2006-09
Relay 2005-07
VUE 2008-09

Suzuki
Xl-7 2007-09
Note – RSE Requires That The OE Radio Was The Source Of Activation. If An Activation Somewhere Else Like The Rear Controls The RSE Will Not Work As Of Yet.
