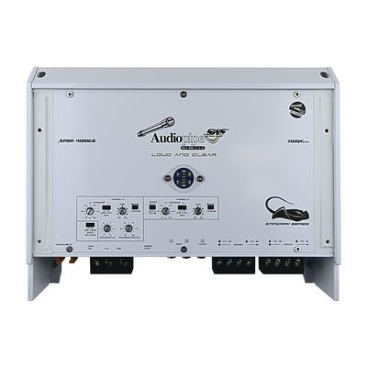

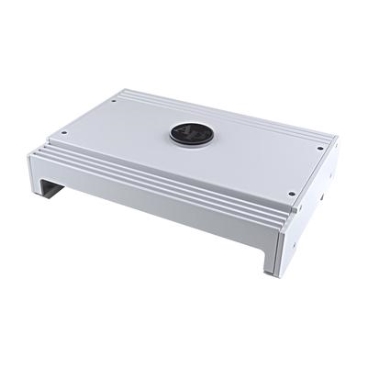

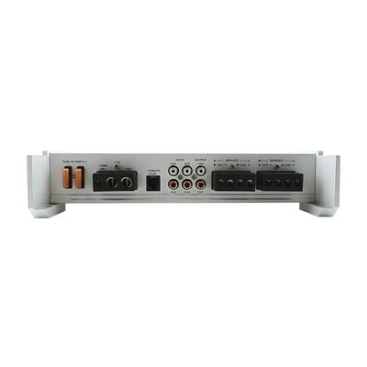

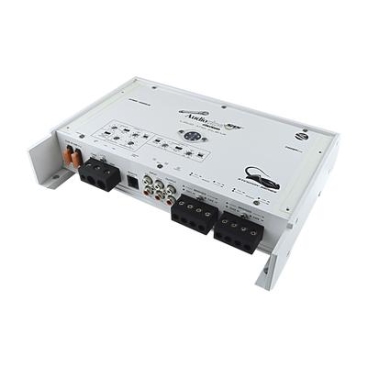

AUDIOPIPE 4-CHANNEL CLASS D MARINE AMP – 780WATTS

Specifications:

• Output powers (RMS) @1% 1Khz 14.4V
• Stereo @4 ohms: 4 x 120 Watts @ 39A
• Stereo @2 ohms: 4 x 195 Watts @ 71A
• Mono @4 ohms: 2 x 390 Watts @ 71A
• Frequency response: -3db – 10Hz~20KHz
• Crossover Range High and Low Pass: 30Hz ~ 300Hz 12dB / Octave
• Bass boost: 0 ~ 12dB @ 27Hz ~ 110Hz
• S/N Ratio (A wtg): >85dB
• Input Sensitivity: 0.2V – 6V
• Overvolt Protection: 16.5V
• Under-voltage protection: 8.5V
• Dimension: 11.1” x 8.4” x 2.5” (283 x 214 x 64mm)
