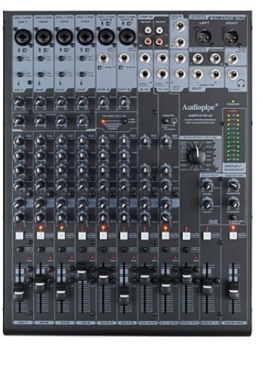

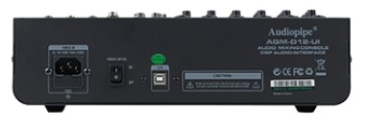

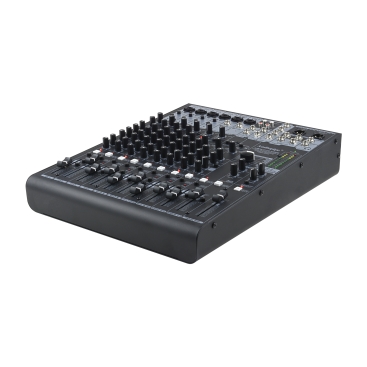

AUDIOPIPE, 12 CHANNEL AUDIO MIXING CONSOLE DSP AUDIO INTERFACE

Specifications:

• Input channels:

  •  Mono: MIC/LINE: 4

  • Mono/Stereo:

  • MIC/LINE: 2

  • Stereo: LINE or USB: 2

• Output Channels:

  • Stereo Out: 2

  • Monitor Out: 1

  • Phones:1

  • Aux Send: 2

  • Group Out: 2

• Functions

  • HPF: 80Hz, 12dB/oct (Mono/Stereo: Mic Only)



  • Phase: Normal/Reverse

•

   COMP:

  • Treshold: +22dB to 8dB



  •  Attack: 0.5msec to 100sec



  •  Release: 2msec 2sec



  •  Gain: -12dB to +12dB



  •  Ratio: 1:1 to 4:1 3 Band EQ: High / Mid / Low

• Frequency Response:

  •  20Hz to 20KHz (-0.5dB)



  • THD: <0.01% output: 0dB/1 KHz



  •  Signal to Noise Ratio: 60dBu



  •  Built-in Effects:



  • 16 programs, 24bit/192KHz



  •  Phantom Power Voltage: +48V



  • Power Requirements: AC 100-240V, 50/60 Hz



  • Power Consumption: 20W

•  Included Accessories:

  •  Owner’s Manual



  •  Rack-Mount Kit

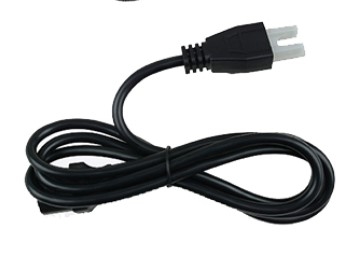

  •  AC Power Cord

    USB Cable 1.2M
