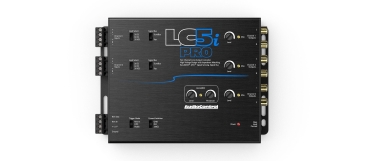

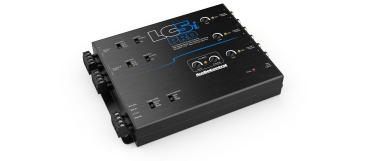

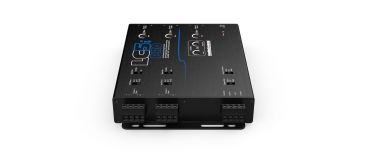

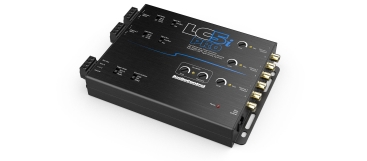

AUDIOCONTROL, 5 CHANNEL LINE OUT CONVERTER WITH ACCUBASS®

Instruction Manual

Specifications:

•  Speaker Level Input: 1 (4 channels)
•  Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
• Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
• Preamp Outputs: 5 (4 channels main, 1 channels bass)
• Maximum Output Level: 9.5Vrms/13V peak
• Output Gain: +/- 15 dB
• Output Impedance: 150Ω
• Total Harmonic Distortion: 0.01%
• Signal to Noise: >124 dB
• Frequency Response: 20 Hz – 20 kHz
• Remote In / GTO™ Signal Sense / Audio Sense
• 12VDC Remote Out (always active when unit is on)
• Current Draw: 330 mA
• Recommended Fuse Rating: 2 A
• Dimensions: 7″L x 5.1″D x 1.14″H (including speaker connectors)
• Weight: 1.1 lbs.

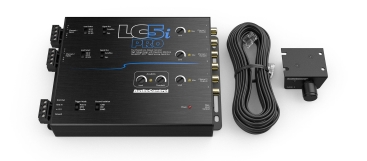

• LC5i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty

Features:​

• Four channels of actiev speaker-level inputs (up to 40v input handling)
• Fixed and variable outputs with discrete-level controls
• AccuBASS® processing for correction of bass roll-off
• Load Selection Switch
• GTO(TM) Signal Sensing
• Ground Isolation Switch
• ACR-1 dash remote included
• Compact design
