AUDIO CONTROL USB AUDIO INTERFACE REAL TIME ANALYZER AND MULTI-TEST TOOL KIT

The DM-RTA Pro Kit includes everything you need for a complete mobile audio measurement solution. Nestled snuggly in the fetching blue hard case, you will find a DM-RTA, AC power supply, all of the required interconnects, and custom test leads for line-level and speaker-level measurements. Included also is the AC-BT24 Bluetooth Streamer/Programmer, which allows you to connect to the DM-RTA using your tablet or phone.

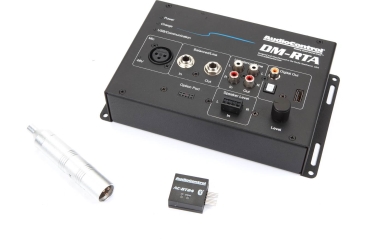

Included in kit:

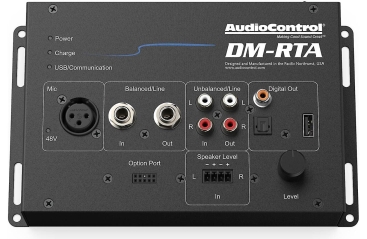

• DM-RTA Real Time Analyzer
• 110V AC power supply/charging adapter
• USB A to B cable
• USB A to A cable

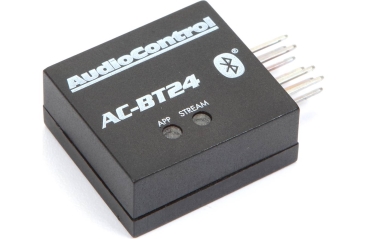

• AC-BT24 Bluetooth® Streamer & Programmer
• CM-10 measurement microphone
• XLR microphone cable
• Speaker input to spring-loaded test leads cable
• RCA input to spring-loaded test leads cable
• AudioControl tuning pick (looks a lot like a guitar pick)

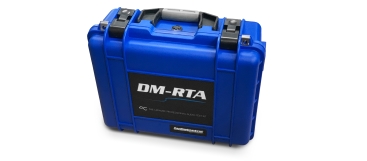

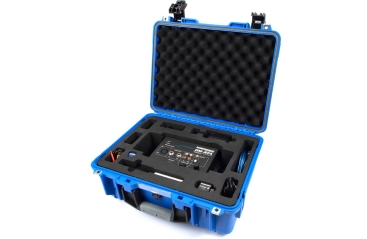

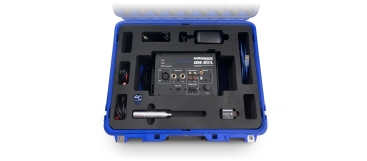

• Blue hard case with laser-cut foam

Specifications:

• Inputs
  • 1 x Balanced (Input Impedance 3.24kΩ)
  • 1 x Unbalanced (Input Impedance 3.24kΩ)
  • 1 x Microphone (Input Impedance 10kΩ)
  • 1 x Speaker Level (Input Impedance 16.24kΩ)
  • Max Low Level Input Voltage: 8 Vrms
  • Max High Level Input Voltage: 40 Vrms



• outputs
  • 1 x Balanced (Output Impedance: 51Ω)
  • 1 x Unbalanced (Output Impedance: 51Ω)
  • 1 x Coax Digital (Output Impedance: 75Ω)
  • 1 x Toslink
  • 1 x USB
  • Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak



• General
  • Power Supply:
  • Battery Life: ~5 Hours



• Weights & imensions
  • Dimensions: 8”W x 4.8”D x 2.4”H
  • Weight: 2.6lbs (1.2kg)



  What’s in the box:

  • AudioControl DM-RTA Pro Kit owner’s manual
  • DM-RTA Analyzer
  • CM-10 Microphone
  • AC-BT24 Bluetooth adapter
  • 15′ Microphone cable (male XLR on one end / female XLR on other end)
  • 6′ USB cable (type-A to type-B / 2.0)
  • 78″ USB Cable (type-A to type-A / 2.0)
  • 58″ AC Power supply (12VDC/2A output)
  • Lighter adapter w/ attached 58″ DC cord
  • 4-Pin Euroblock (Phoenix) connector (pre-installed on analyzer)
  • 2 Test-probes on 79″ cable w/ 4-pin Euroblock connector
  • 2 Test-probes on 79″ cable w/ single male RCA connector
  • Hard-shell carry-case
  • Audio Control guitar pick
